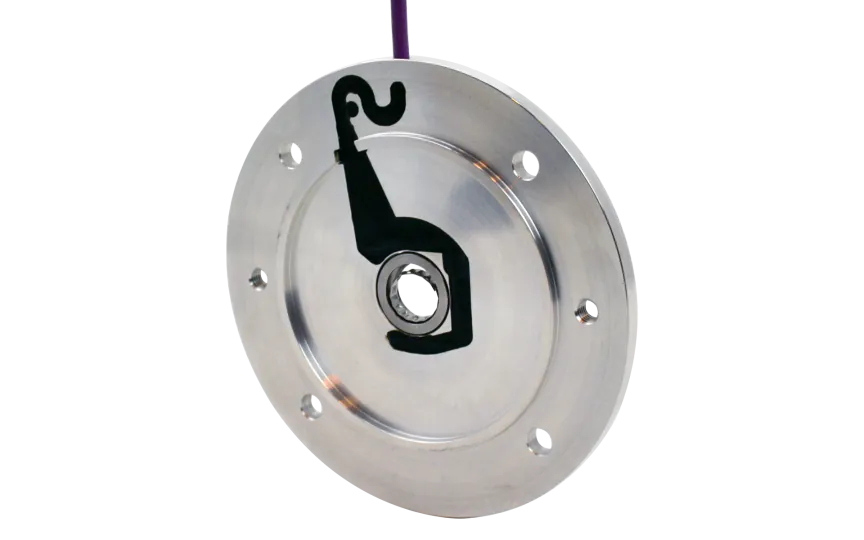

BEGE flange encoder Absolut MIG AST-120-09-S018-7, SSI 18 BIT, 10m cable, aluminium
HV53A12009S01807010Key attributes: Absolute encoder type – position is retained even after power interruption; Interface: SSI; Resolution: 18 bit; Cable length: 10 m; Material: Aluminium; Flange diameter: 120 mm; Flange BCD: 100 mm; Flange thickness: 7 mm; Shaft diameter: 9 mm; IEC standard: 56B5; Voltage input: 5–24 VDC; Protection class: IP55/IP67. Suitable for applications requiring accurate feedback and advanced automation integration.
Specifications
Product description
Downloads
€572.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP55 / IP67
Outer diameter (mm)
120
Flange thickness (mm)
7
Encoder Material
Aluminium
Cable length (m)
10
Shaft diameter (mm)
9
IEC norm
56B5
BCD norm
100
HS-Code
90292038.000000
Encoder supply
5-24VDC
Encoder signals
SSI
Pulses
18 BIT
Description
BEGE, a renowned Dutch manufacturer, specializes in high-quality drive technology for industrial automation. Their products are known for robust construction, precision engineering, and a focus on reliable operation in demanding environments.
**Key Features & Advantages of MIG AST-120-09-S018-7 Absolute Encoder:**
- Absolute single-turn technology ensures accurate position feedback, even after power loss, eliminating the need for re-homing on system start-up and minimizing system downtime.- Delivers high resolution of 18 BIT output, allowing for precise control and monitoring in advanced automation and motion control applications.- Equipped with SSI (Synchronous Serial Interface) output, ensuring reliable, high-speed, noise-resistant communication with modern controllers and PLCs.- Rugged aluminium housing and a robust IP55/IP67 protection rating, enabling operation in harsh industrial environments with protection against dust, moisture, and water ingress.- Large flange diameter (Ø120mm, BCD 100mm, thickness 7mm) for secure mounting in IEC 56B5 compliant systems, supporting integration into a wide range of automation equipment and electric motors.- 9mm solid shaft construction ensures long lifespan and operational stability in heavy-duty use.- Supplied with a 10-meter cable, allowing flexible installation across various production environments.**Applicability & Versatility:**
- Ideal for servo drives, robotic arms, material handling systems, and automated production lines requiring real-time, precise position monitoring and control.- Particularly suited for advanced control systems where retention of position information after power failure is essential, such as packaging, printing machines, or conveyor systems.- Compatible with advanced automation platforms supporting SSI interface, offering seamless integration and enhanced process reliability.**Other BEGE Encoder Types:**
- MIG Basic: Incremental encoder for fundamental speed feedback tasks in standard automation applications.- MIG Nova+: Incremental encoder with higher resolution and improved signal stability for more precise control in sophisticated automated systems.- MIG AST: Absolute encoder for precise position control and retention after power loss, designed for high-end and advanced automation needs.
**Key Features & Advantages of MIG AST-120-09-S018-7 Absolute Encoder:**
- Absolute single-turn technology ensures accurate position feedback, even after power loss, eliminating the need for re-homing on system start-up and minimizing system downtime.- Delivers high resolution of 18 BIT output, allowing for precise control and monitoring in advanced automation and motion control applications.- Equipped with SSI (Synchronous Serial Interface) output, ensuring reliable, high-speed, noise-resistant communication with modern controllers and PLCs.- Rugged aluminium housing and a robust IP55/IP67 protection rating, enabling operation in harsh industrial environments with protection against dust, moisture, and water ingress.- Large flange diameter (Ø120mm, BCD 100mm, thickness 7mm) for secure mounting in IEC 56B5 compliant systems, supporting integration into a wide range of automation equipment and electric motors.- 9mm solid shaft construction ensures long lifespan and operational stability in heavy-duty use.- Supplied with a 10-meter cable, allowing flexible installation across various production environments.**Applicability & Versatility:**
- Ideal for servo drives, robotic arms, material handling systems, and automated production lines requiring real-time, precise position monitoring and control.- Particularly suited for advanced control systems where retention of position information after power failure is essential, such as packaging, printing machines, or conveyor systems.- Compatible with advanced automation platforms supporting SSI interface, offering seamless integration and enhanced process reliability.**Other BEGE Encoder Types:**
- MIG Basic: Incremental encoder for fundamental speed feedback tasks in standard automation applications.- MIG Nova+: Incremental encoder with higher resolution and improved signal stability for more precise control in sophisticated automated systems.- MIG AST: Absolute encoder for precise position control and retention after power loss, designed for high-end and advanced automation needs.
