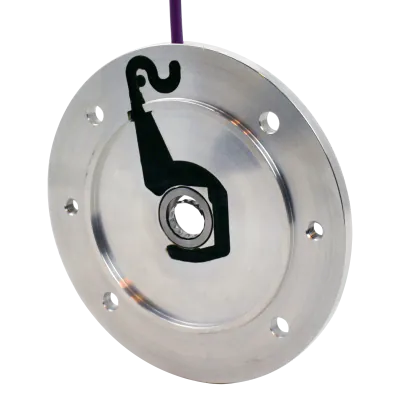

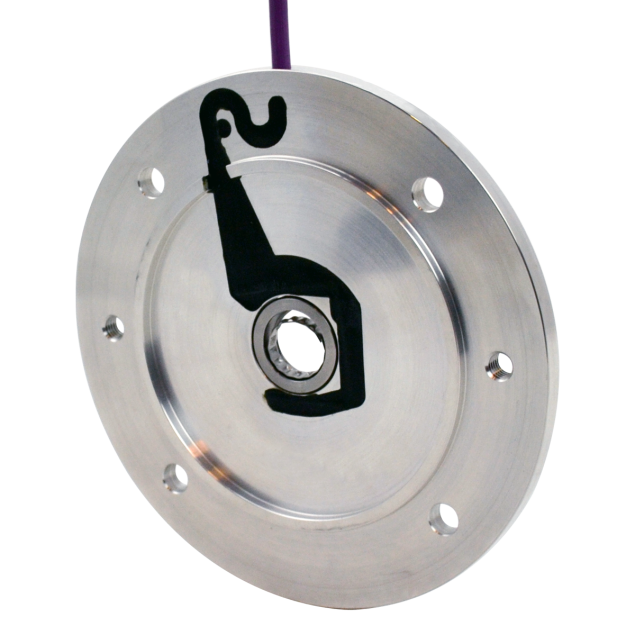

BEGE flange encoder Absolut MIG AST-120-09-B018-7, BiSS 18 BIT, 5m cable, aluminium
HV53A12009B01807005The BEGE Flange Encoder Absolute MIG AST-120-09-B018-7 is an absolute single-turn encoder designed for precise position sensing in advanced control applications. This encoder retains position data even after power loss. It features a flange outer diameter of 120mm, BCD of 100mm, and shaft diameter of 9mm. The encoder is compatible with IEC 56B5 motors and utilizes a BiSS output protocol. It offers 18 BIT resolution and operates with input voltage of 5-24VDC. The enclosure is made from aluminium and provides IP55/IP67 protection. Cable length is 5 meters. Flange thickness is 7mm.
Specifications
Product description
Downloads
€537.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP55 / IP67
Outer diameter (mm)
120
Flange thickness (mm)
7
Encoder Material
Aluminium
Cable length (m)
5
Shaft diameter (mm)
9
IEC norm
56B5
BCD norm
100
HS-Code
90292038.000000
Encoder supply
5-24VDC
Encoder signals
BiSS
Pulses
18 BIT
Description
**Product Overview:** The BEGE MIG AST-120-09-B018-7 is a robust, high-precision absolute single-turn encoder engineered for demanding industrial environments and advanced automation systems. Developed by BEGE, a leading Dutch manufacturer known for its high-quality drive components, this encoder delivers superior performance, durability, and versatility for engineers and technical specialists.
Absolute Positioning: The encoder provides absolute single-turn position feedback with 18-bit resolution, ensuring precise and reliable measurement—even after power loss, making it ideal for applications requiring continuous positional awareness.
BiSS Output Interface: High-speed, noise-resistant BiSS output ensures secure, real-time data transmission for advanced motion control and seamless integration in digital automation architectures.
Robust Aluminium Construction: The encoder features a rugged aluminium housing offering high resistance to mechanical impacts and environmental factors, suitable for harsh industrial settings.
High Protection Ratings: With IP55 and IP67 ratings, the device is protected against dust, water jets, and temporary submersion, maximizing its operational reliability in adverse conditions.
Flexible Installation: The encoder is equipped with a Ø120mm flange (BCD 100mm, thickness 7mm), 9mm shaft diameter, and conforms to IEC 56B5 norm, supporting direct compatibility with standard motor systems.
Long Connection Cable: The 5-meter cable provides ample flexibility for installation in complex or larger machinery layouts, reducing wiring constraints in industrial setups.
Wide Voltage Input: Accepts 5–24VDC, facilitating integration in a variety of control systems.
Application Versatility: Optimal for precise position control in robotics, CNC machines, packaging lines, conveying systems, and automated warehouses—where reliability and accuracy are paramount.
BEGE Brand Excellence: BEGE is renowned for its engineering expertise, providing innovative drive solutions with a focus on performance, reliability, and ease of integration for industrial automation.
Absolute Positioning: The encoder provides absolute single-turn position feedback with 18-bit resolution, ensuring precise and reliable measurement—even after power loss, making it ideal for applications requiring continuous positional awareness.
BiSS Output Interface: High-speed, noise-resistant BiSS output ensures secure, real-time data transmission for advanced motion control and seamless integration in digital automation architectures.
Robust Aluminium Construction: The encoder features a rugged aluminium housing offering high resistance to mechanical impacts and environmental factors, suitable for harsh industrial settings.
High Protection Ratings: With IP55 and IP67 ratings, the device is protected against dust, water jets, and temporary submersion, maximizing its operational reliability in adverse conditions.
Flexible Installation: The encoder is equipped with a Ø120mm flange (BCD 100mm, thickness 7mm), 9mm shaft diameter, and conforms to IEC 56B5 norm, supporting direct compatibility with standard motor systems.
Long Connection Cable: The 5-meter cable provides ample flexibility for installation in complex or larger machinery layouts, reducing wiring constraints in industrial setups.
Wide Voltage Input: Accepts 5–24VDC, facilitating integration in a variety of control systems.
Application Versatility: Optimal for precise position control in robotics, CNC machines, packaging lines, conveying systems, and automated warehouses—where reliability and accuracy are paramount.
BEGE Brand Excellence: BEGE is renowned for its engineering expertise, providing innovative drive solutions with a focus on performance, reliability, and ease of integration for industrial automation.
