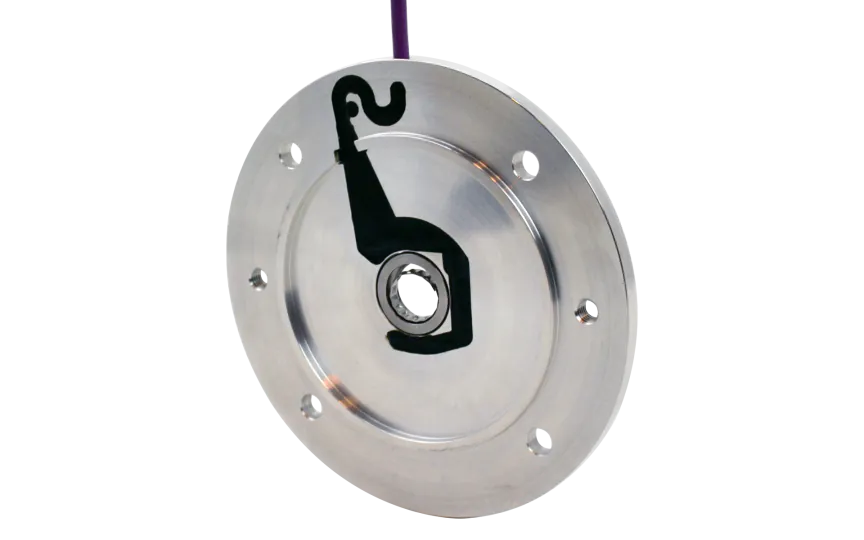

BEGE flange encoder Absolut MIG AST-120-09-B018-7, BiSS 18 BIT, 20m cable, aluminium
HV53A12009B01807020The BEGE Flanged Encoder Absolute MIG AST-120-09-B018-7 is an absolute single-turn encoder that maintains position detection even after power loss, making it suitable for precise positioning and advanced control systems. Key attributes: output: BiSS; resolution: 18 BIT; input voltage: 5–24 VDC; flange outer diameter: 120 mm; flange BCD: 100 mm; flange thickness: 7 mm; shaft diameter: 9 mm; IEC standard: 56B5; cable length: 20 m; material: aluminium; IP classification: IP55 / IP67. Suitable for industrial automation and environments requiring robust feedback devices.
Specifications
Product description
Downloads
€642.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP55 / IP67
Outer diameter (mm)
120
Flange thickness (mm)
7
Encoder Material
Aluminium
Cable length (m)
20
Shaft diameter (mm)
9
IEC norm
56B5
BCD norm
100
HS-Code
90292038.000000
Encoder supply
5-24VDC
Encoder signals
BiSS
Pulses
18 BIT
Description
**Brand Description:**
BEGE is a well-established Dutch manufacturer known globally for innovative drive technology solutions. Their encoders are trusted for their durability, precision, and reliability in demanding industrial environments. **Product Description & Key Features:**
**Absolute Single-Turn Encoder:** Unlike incremental models, the MIG AST retains its precise position even after a power outage, ensuring unmatched position reliability for advanced automation.
**High Resolution - 18 BIT Output:** Delivers exceptionally precise position feedback, ideal for applications that demand accuracy in critical motion control systems.
**Signal Interface - BiSS Output:** Equipped with a modern BiSS interface for high-speed and secure digital communication between encoder and controller, ensuring low latency and robust signal integrity.
**Generous Cable Length – 20 meters:** Allows for flexible installation, supporting large industrial systems without risk of signal loss, which increases system reliability.
**Rugged Construction - Aluminium Housing & IP55/IP67 Protection:** The anodized aluminium body and high ingress protection make this encoder suitable for use in harsh industrial environments, both dusty and wet.
**Flange Dimensions & Compatibility:** Outer flange diameter of 120mm, 7mm thickness, BCD of 100mm, 9mm shaft diameter, compliant with IEC 56B5 for seamless integration with standard electric motors. **Key Application Areas:**
**Robotics and Advanced Positioning:** Guarantees precise positioning for robotic arms, CNC machinery, and high-precision conveyors due to its absolute feedback and high resolution.
**Automated Production Lines:** Maintains accurate positional data for motors and actuators, even after power failure, maximizing uptime and reducing need for manual recalibration.
**Harsh Industrial Environments:** The robust aluminium design and IP55/IP67 rating ensure long service life in demanding automotive, food, and manufacturing industries. **MIG Series Overview:**
MIG Basic – Incremental encoder for basic speed feedback in standard automation tasks.
MIG Nova+ – Incremental encoder with higher resolution and improved signal stability, suitable for precise control in automated systems.
MIG AST – Absolute encoder for retention of position after power loss, used in precise positioning and advanced control systems.
BEGE is a well-established Dutch manufacturer known globally for innovative drive technology solutions. Their encoders are trusted for their durability, precision, and reliability in demanding industrial environments. **Product Description & Key Features:**
**Absolute Single-Turn Encoder:** Unlike incremental models, the MIG AST retains its precise position even after a power outage, ensuring unmatched position reliability for advanced automation.
**High Resolution - 18 BIT Output:** Delivers exceptionally precise position feedback, ideal for applications that demand accuracy in critical motion control systems.
**Signal Interface - BiSS Output:** Equipped with a modern BiSS interface for high-speed and secure digital communication between encoder and controller, ensuring low latency and robust signal integrity.
**Generous Cable Length – 20 meters:** Allows for flexible installation, supporting large industrial systems without risk of signal loss, which increases system reliability.
**Rugged Construction - Aluminium Housing & IP55/IP67 Protection:** The anodized aluminium body and high ingress protection make this encoder suitable for use in harsh industrial environments, both dusty and wet.
**Flange Dimensions & Compatibility:** Outer flange diameter of 120mm, 7mm thickness, BCD of 100mm, 9mm shaft diameter, compliant with IEC 56B5 for seamless integration with standard electric motors. **Key Application Areas:**
**Robotics and Advanced Positioning:** Guarantees precise positioning for robotic arms, CNC machinery, and high-precision conveyors due to its absolute feedback and high resolution.
**Automated Production Lines:** Maintains accurate positional data for motors and actuators, even after power failure, maximizing uptime and reducing need for manual recalibration.
**Harsh Industrial Environments:** The robust aluminium design and IP55/IP67 rating ensure long service life in demanding automotive, food, and manufacturing industries. **MIG Series Overview:**
MIG Basic – Incremental encoder for basic speed feedback in standard automation tasks.
MIG Nova+ – Incremental encoder with higher resolution and improved signal stability, suitable for precise control in automated systems.
MIG AST – Absolute encoder for retention of position after power loss, used in precise positioning and advanced control systems.
