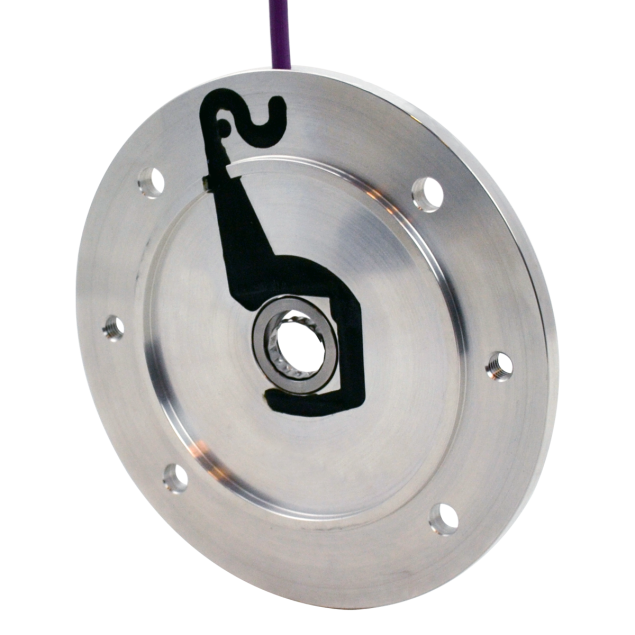

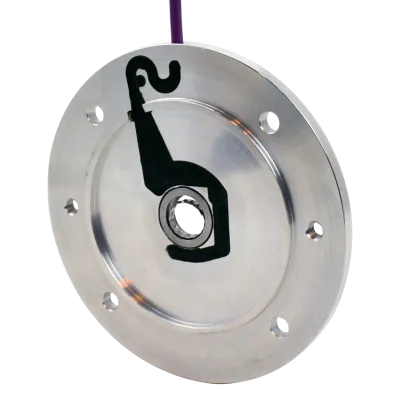

BEGE flange encoder Absolut MIG AST-105-14-S018-7, SSI 18 BIT, 2m cable, aluminium
HV53A10514S01807002The BEGE Flanged Encoder Absolute MIG AST-105-14-S018-7, SSI 18 BIT, 2m cable, aluminium is an absolute single-turn encoder that maintains position data even after power loss, making it suitable for precise positioning and advanced control systems. Key attributes include: Outer flange diameter: 105mm, Flange BCD: 85mm, Shaft diameter: 14mm, IEC standard: 71B14, Flange thickness: 7mm, 18-bit resolution, SSI output, Input voltage: 5–24VDC, Cable length: 2m, Material: aluminium, and IP rating: IP55/IP67. Rugged design for industrial applications where reliable position feedback is required.
Specifications
Product description
Downloads
€509.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP55 / IP67
Outer diameter (mm)
105
Flange thickness (mm)
7
Encoder Material
Aluminium
Cable length (m)
2
Shaft diameter (mm)
14
IEC norm
71B14
BCD norm
85
HS-Code
90292038.000000
Encoder supply
5-24VDC
Encoder signals
SSI
Pulses
18 BIT
Description
BEGE Power Transmission is a renowned manufacturer known for its innovative and reliable automation components engineered for industrial drive solutions. BEGE’s high-performance encoders are trusted by specialists and engineers in demanding environments worldwide, ensuring consistent, precision feedback in a variety of applications.**Product Name:**
BEGE Flange Encoder Absolute MIG AST-105-14-S018-7, SSI 18 BIT, 2m cable, aluminium**Key Features and Advantages:**
Robust flange design with an external diameter of 105mm, optimized for challenging industrial environments and reliable mechanical integration.
85mm bolt circle diameter (BCD) makes it compatible with IEC 71B14 motors for flexible installation in automation systems.
14mm shaft diameter ensures stable torque transmission and secure mounting.
High-grade aluminium housing for lightweight construction without compromising durability or corrosion resistance, ideal for long-term deployment.
Supports SSI digital output for fast, noise-resistant communication with advanced control systems.
Delivers precise 18-bit single-turn absolute position feedback, maintaining exact shaft position after power loss—crucial for safety and system integrity in critical processes.
Wide input voltage range of 5-24VDC guarantees compatibility with multiple industrial devices.
Protection class up to IP55/IP67 provides superior resistance against dust and water, suitable for harsh and high-hygiene environments.
Supplied with a 2-meter cable for versatile installation and straightforward integration into control cabinets.**Application Possibilities:**
Perfect for advanced motion control and servo applications requiring absolute position feedback, such as robotics, packaging machines, and conveyor technology.
Ensures precise positioning and repeatability for automated production lines, pick-and-place applications, and CNC machinery.
Optimal for industries where position data continuity is vital during power interruptions, including material handling, logistics, and smart manufacturing.
BEGE Flange Encoder Absolute MIG AST-105-14-S018-7, SSI 18 BIT, 2m cable, aluminium**Key Features and Advantages:**
Robust flange design with an external diameter of 105mm, optimized for challenging industrial environments and reliable mechanical integration.
85mm bolt circle diameter (BCD) makes it compatible with IEC 71B14 motors for flexible installation in automation systems.
14mm shaft diameter ensures stable torque transmission and secure mounting.
High-grade aluminium housing for lightweight construction without compromising durability or corrosion resistance, ideal for long-term deployment.
Supports SSI digital output for fast, noise-resistant communication with advanced control systems.
Delivers precise 18-bit single-turn absolute position feedback, maintaining exact shaft position after power loss—crucial for safety and system integrity in critical processes.
Wide input voltage range of 5-24VDC guarantees compatibility with multiple industrial devices.
Protection class up to IP55/IP67 provides superior resistance against dust and water, suitable for harsh and high-hygiene environments.
Supplied with a 2-meter cable for versatile installation and straightforward integration into control cabinets.**Application Possibilities:**
Perfect for advanced motion control and servo applications requiring absolute position feedback, such as robotics, packaging machines, and conveyor technology.
Ensures precise positioning and repeatability for automated production lines, pick-and-place applications, and CNC machinery.
Optimal for industries where position data continuity is vital during power interruptions, including material handling, logistics, and smart manufacturing.
