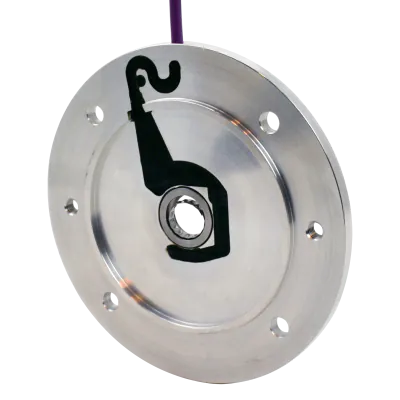

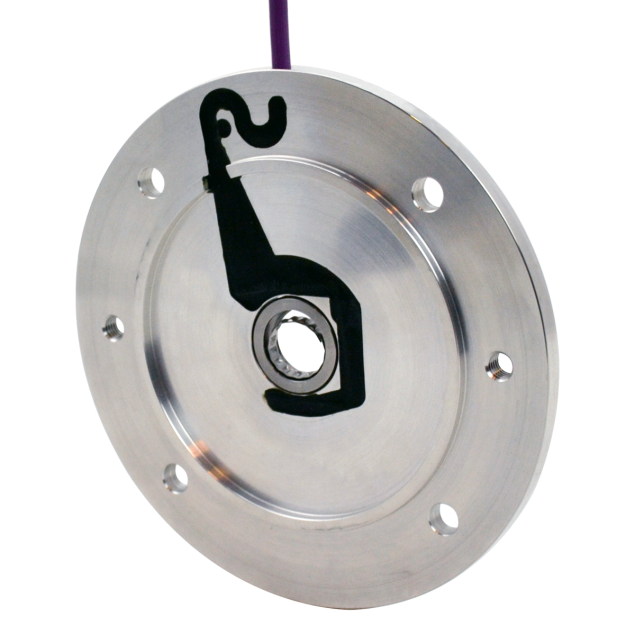

BEGE flange encoder Absolut MIG AST-105-14-S018-7, SSI 18 BIT, 20m cable, aluminium
HV53A10514S01807020The BEGE Flange Encoder Absolute MIG AST-105-14-S018-7, SSI 18 BIT, 20m cable, aluminium is an absolute single-turn encoder designed for precise position measurement, retaining position data after power loss for advanced control systems. Key attributes include a flange outside diameter of 105mm (BCD 85mm), a shaft diameter of 14mm, and compatibility with IEC 71B14 motors. The encoder features an 18-bit SSI output, supports 5-24VDC input, and comes with a 20-meter cable. The flange thickness is 7mm. Constructed from aluminium, it offers IP55/IP67 protection for reliable operation in demanding environments.
Specifications
Product description
Downloads
€635.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP55 / IP67
Outer diameter (mm)
105
Flange thickness (mm)
7
Encoder Material
Aluminium
Cable length (m)
20
Shaft diameter (mm)
14
IEC norm
71B14
BCD norm
85
HS-Code
90292038.000000
Encoder supply
5-24VDC
Encoder signals
SSI
Pulses
18 BIT
Description
**Manufacturer:**
BEGE Power Transmission is a renowned Dutch manufacturer specializing in high-quality automation and drive technology solutions. Their encoders are engineered for outstanding reliability, precision, and resilience in demanding industrial environments.**Key Product Features & Attributes:**
Absolute encoder technology ensures precise position retention even after power loss, making it ideal for complex automation and safety-critical applications.
Single-turn resolution of 18 BIT enables highly detailed position data, supporting advanced control strategies in automation systems.
Robust aluminium housing provides excellent protection against mechanical stresses, ensuring long-term durability in harsh environments.
Ingress Protection rated at IP55/IP67, allowing safe and reliable operation in dusty, wet, or outdoor industrial areas.
Supplied with a 20-meter cable, offering extensive installation flexibility for a wide range of machinery layouts.
Flange diameter 105mm and BCD 85mm according to IEC 71B14 standard, ensuring compatibility with standard motor/flange interfaces.
Shaft diameter of 14mm is suitable for a broad range of motors and motion control devices.
Standard SSI output offers robust, noise-resistant digital communication for seamless integration into modern control systems.
Wide input voltage range (5-24VDC) enhances application compatibility and installation versatility.**Advantages for Engineers & Industrial Applications:**
Absolute encoders like the MIG AST eliminate manual referencing after power interruptions, optimizing uptime and system safety in robotics, packaging, and automated logistics.
High-resolution position feedback ensures smooth, accurate motion in demanding processes like CNC machining, printing, and conveyor technology.
Durable aluminium construction and superior IP ratings protect against vibration, dust, and moisture, reducing maintenance requirements.
Long cable option supports installation in large machines or distributed automation cells.**Application Possibilities:**
Ideal for advanced position feedback in automated assembly lines, robotic arms, warehouse automation, and positioning tables.
Suitable for use in environments requiring rugged components, such as food processing, materials handling, and outdoor systems.
BEGE Power Transmission is a renowned Dutch manufacturer specializing in high-quality automation and drive technology solutions. Their encoders are engineered for outstanding reliability, precision, and resilience in demanding industrial environments.**Key Product Features & Attributes:**
Absolute encoder technology ensures precise position retention even after power loss, making it ideal for complex automation and safety-critical applications.
Single-turn resolution of 18 BIT enables highly detailed position data, supporting advanced control strategies in automation systems.
Robust aluminium housing provides excellent protection against mechanical stresses, ensuring long-term durability in harsh environments.
Ingress Protection rated at IP55/IP67, allowing safe and reliable operation in dusty, wet, or outdoor industrial areas.
Supplied with a 20-meter cable, offering extensive installation flexibility for a wide range of machinery layouts.
Flange diameter 105mm and BCD 85mm according to IEC 71B14 standard, ensuring compatibility with standard motor/flange interfaces.
Shaft diameter of 14mm is suitable for a broad range of motors and motion control devices.
Standard SSI output offers robust, noise-resistant digital communication for seamless integration into modern control systems.
Wide input voltage range (5-24VDC) enhances application compatibility and installation versatility.**Advantages for Engineers & Industrial Applications:**
Absolute encoders like the MIG AST eliminate manual referencing after power interruptions, optimizing uptime and system safety in robotics, packaging, and automated logistics.
High-resolution position feedback ensures smooth, accurate motion in demanding processes like CNC machining, printing, and conveyor technology.
Durable aluminium construction and superior IP ratings protect against vibration, dust, and moisture, reducing maintenance requirements.
Long cable option supports installation in large machines or distributed automation cells.**Application Possibilities:**
Ideal for advanced position feedback in automated assembly lines, robotic arms, warehouse automation, and positioning tables.
Suitable for use in environments requiring rugged components, such as food processing, materials handling, and outdoor systems.
