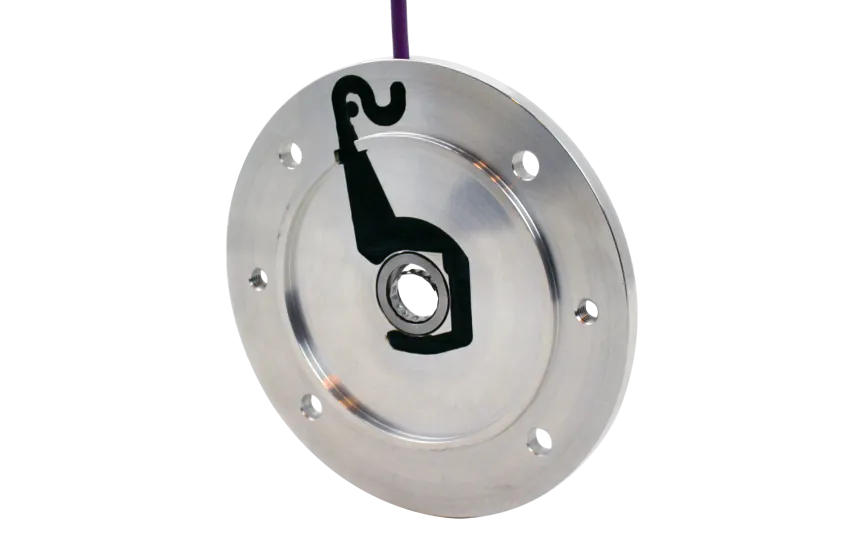

BEGE flange encoder Absolut MIG AST-105-14-B018-7, BiSS 18 BIT, 2m cable, aluminium
HV53A10514B01807002The BEGE Flange Encoder Absolute MIG AST-105-14-B018-7 is an absolute single-turn encoder, providing reliable position feedback that is retained even after power loss, making it suitable for precise positioning and advanced control systems. Key attributes: Flange outside diameter: 105mm; Flange BCD: 85mm; Flange thickness: 7mm; Shaft diameter: 14mm; IEC norm: 71B14; Output: BiSS, 18 BIT; Input voltage: 5-24VDC; Cable length: 2m; Material: aluminium; IP rating: IP55/IP67. This encoder is designed for integration in demanding automation environments.
Specifications
Product description
Downloads
€509.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP55 / IP67
Outer diameter (mm)
105
Flange thickness (mm)
7
Encoder Material
Aluminium
Cable length (m)
2
Shaft diameter (mm)
14
IEC norm
71B14
BCD norm
85
HS-Code
90292038.000000
Encoder supply
5-24VDC
Encoder signals
BiSS
Pulses
18 BIT
Description
Produced by BEGE Power Transmission, a trusted brand renowned for their high-quality drive technology, this encoder ensures reliable feedback and position control for demanding automation environments.
Absolute Single-Turn Encoder: Guarantees exact position values are retained even after power loss, critical for advanced motion control and safety in industrial automation systems.
High-Resolution Measurement: The 18-bit output provides precise feedback, enabling accurate remote monitoring, positioning tasks, and process optimization in robotics, material handling, and industrial machinery.
BiSS Interface Output: Delivers rapid, interference-resistant digital communication for seamless integration with modern control systems and real-time feedback applications.
Robust Construction: Manufactured from durable aluminium, with an IP55/IP67 rating, making it suitable for challenging environments, resistant to dust and water ingress.
Versatile Mounting: 105mm flange diameter and IEC 71B14 compatibility ensure straightforward integration with a wide range of motors and mechanical systems.
14mm Shaft Diameter: Standardized shaft enables compatibility with common drive systems and precise torque transmission.
2-Meter Cable Length: Offers flexible installation options for various machinery configurations, reducing cabling complexity.
85mm Bolt Circle Diameter (BCD) and 7mm Flange Thickness: Ensures reliable mounting in systems with stringent mechanical requirements.
Wide Input Voltage Range (5-24VDC): Allows integration with most industrial power supplies for universality and system compatibility.
Typical Applications: - Position feedback for conveyors, robotics and automated warehouse systems. - Precise motion and speed control in packaging, printing and CNC machinery. - Feedback and diagnostics in advanced drive systems and process automation. **Other BEGE Encoder Types:**
MIG Basic: Incremental encoder for basic speed feedback in standard automation tasks.
MIG Nova+: Incremental encoder with higher resolution and enhanced signal stability, suitable for more precise control in automated systems.
