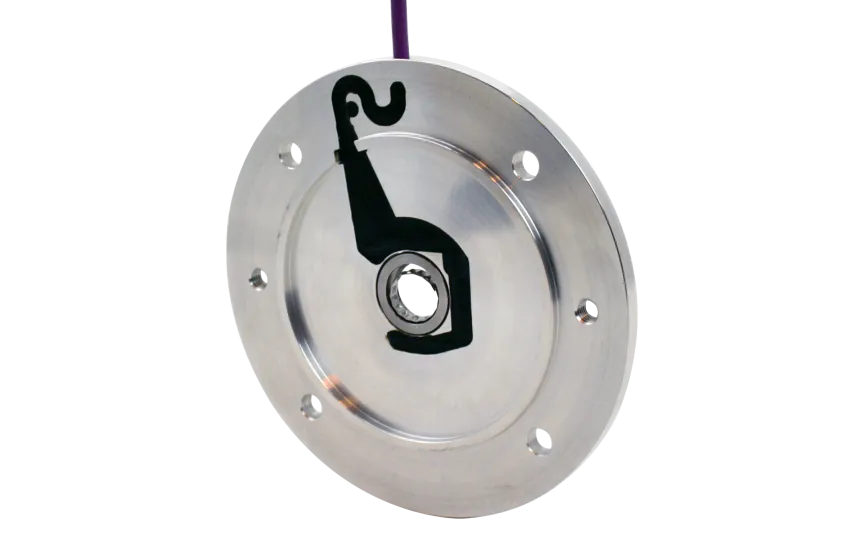

BEGE flange encoder Absolut MIG AST-090-11-S018-7, SSI 18 BIT, 2m cable, aluminium
HV53A09011S01807002The BEGE Flange Encoder Absolute MIG AST-090-11-S018-7, SSI 18 BIT, 2m cable, aluminium is an absolute single-turn encoder that maintains position data even after power loss, making it ideal for precise positioning in advanced control systems. It offers 18 BIT resolution and uses SSI output for reliable digital communication. Key features include a flange outside diameter of 90 mm, flange BCD 75 mm, 7 mm flange thickness, shaft diameter 11 mm, and is compatible with IEC 63B14 motors. The encoder housing is aluminium, with a 2 meter cable length and a voltage input of 5-24VDC. Protection class is IP55/IP67 for use in demanding environments.
Specifications
Product description
Downloads
€492.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP55 / IP67
Outer diameter (mm)
90
Flange thickness (mm)
7
Encoder Material
Aluminium
Cable length (m)
2
Shaft diameter (mm)
11
IEC norm
63B14
BCD norm
75
HS-Code
90292038.000000
Encoder supply
5-24VDC
Encoder signals
SSI
Pulses
18 BIT
Description
**Brand/Manufacturer:** BEGE Power Transmission – BEGE is a renowned manufacturer specializing in high-quality industrial encoders and automation solutions, known for innovation, reliability, and durability in demanding environments.
**Absolute Positioning:** MIG AST is a single-turn absolute encoder that maintains its position data even after power loss, ensuring process safety and minimizing downtime.
**High Resolution:** Equipped with 18-bit resolution per revolution, it provides extreme precision and accurate feedback for advanced closed-loop control systems.
**Robust Signal Output:** Utilizes SSI output (Synchronous Serial Interface) for reliable, noise-immune communication in industrial environments.
**Wide Supply Voltage:** Accepts input voltage from 5-24VDC, supporting compatibility with various control systems and simplifying integration.
**Superior Build Quality:** Constructed in aluminum with a solid Ø90mm flange and IP55/IP67 protection rating, ensuring resistance to dust, water, and harsh conditions.
**Universal Fit:** 11mm shaft and 63B14 IEC standard interface offer straightforward mounting on a wide range of motors and equipment.
**2 Meter Cable:** Offers flexible installation with pre-assembled 2-meter cable, reducing installation time and potential wiring errors.
**Typical Applications:** Ideal for high-precision positioning tasks in robotics, automated guided vehicles (AGVs), servo drive systems, packaging machinery, and assembly lines requiring accurate position retention and feedback.
**Advantages Over Incremental Encoders:** Unlike incremental types, absolute encoders like the MIG AST eliminate the need for homing cycles after startup and guarantee position traceability at all times.
**Versatile Environmental Suitability:** With IP55/IP67, durable aluminum housing, and robust design, it excels in demanding industrial, material handling, and automation applications.
**Absolute Positioning:** MIG AST is a single-turn absolute encoder that maintains its position data even after power loss, ensuring process safety and minimizing downtime.
**High Resolution:** Equipped with 18-bit resolution per revolution, it provides extreme precision and accurate feedback for advanced closed-loop control systems.
**Robust Signal Output:** Utilizes SSI output (Synchronous Serial Interface) for reliable, noise-immune communication in industrial environments.
**Wide Supply Voltage:** Accepts input voltage from 5-24VDC, supporting compatibility with various control systems and simplifying integration.
**Superior Build Quality:** Constructed in aluminum with a solid Ø90mm flange and IP55/IP67 protection rating, ensuring resistance to dust, water, and harsh conditions.
**Universal Fit:** 11mm shaft and 63B14 IEC standard interface offer straightforward mounting on a wide range of motors and equipment.
**2 Meter Cable:** Offers flexible installation with pre-assembled 2-meter cable, reducing installation time and potential wiring errors.
**Typical Applications:** Ideal for high-precision positioning tasks in robotics, automated guided vehicles (AGVs), servo drive systems, packaging machinery, and assembly lines requiring accurate position retention and feedback.
**Advantages Over Incremental Encoders:** Unlike incremental types, absolute encoders like the MIG AST eliminate the need for homing cycles after startup and guarantee position traceability at all times.
**Versatile Environmental Suitability:** With IP55/IP67, durable aluminum housing, and robust design, it excels in demanding industrial, material handling, and automation applications.
