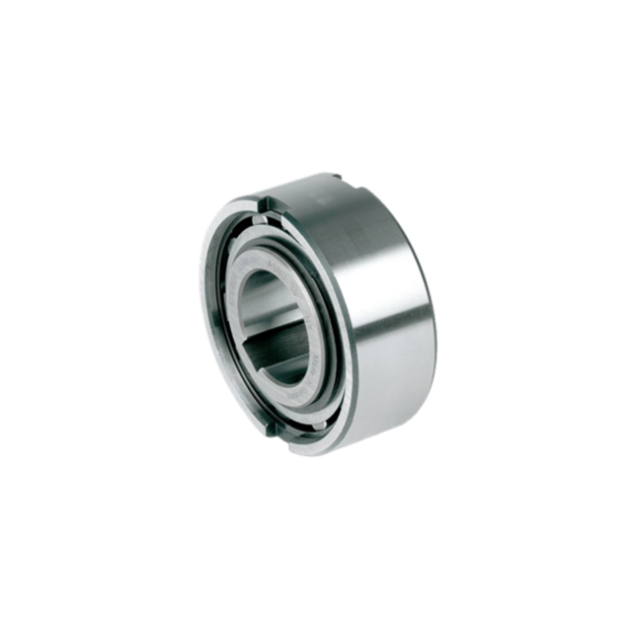

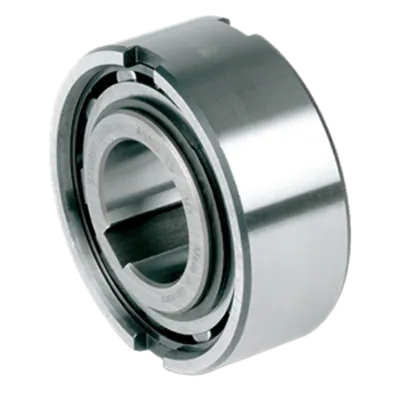

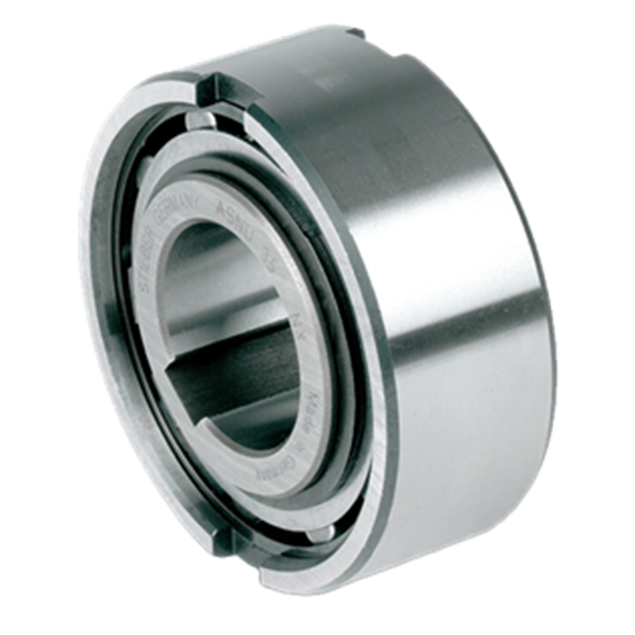

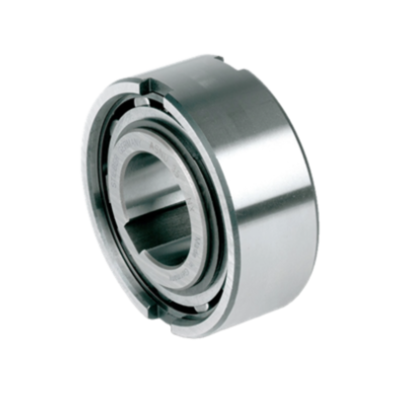

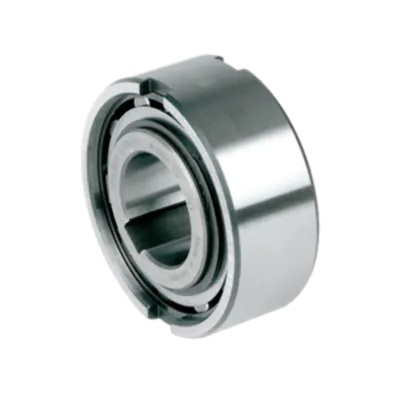

Stieber friløbsleje ASNU 30mm, stål
HV73100110Det indbyggede ASNU friløbsleje fra Steiber øger effektiviteten og pålideligheden i mekaniske systemer. ASNU 30 mm er et friløbsleje af rulletypen, som ikke er lejeunderstøttet. Korrekt smøring og tætning under installationen sikrer langvarig ydeevne.
Specifikationer
Produktbeskrivelse
Downloads
2.479,00 kr.
På lager
Forventet afsendelse: 24-10-2024
Specifikationer
Type
ASNU
Overskridende hastighed imax (RPM)
1400
Frigørelsesmoment (Ncm)
14
Overskridende hastighed amax (RPM)
2200
Producent
Stieber
Max. moment (Nm)
255
Akselstørrelse (mm)
Ø30
Beskrivelse
Nøglefunktioner:
- Rulle friløbsleje: Sikrer jævn, effektiv kraftoverførsel.
- Ikke-lejeunderstøttet: Reducerer friktion og slid, forlænger levetiden.
- Forbedret belastningskapacitet: Håndterer aksiale og radiale belastninger effektivt med ekstra lejer.
- Holdbarhed: Materialer af høj kvalitet og præcisionsteknik til krævende applikationer.
- Nem integration: Designet til sømløs installation sammen med lejer inden for samme tolerancer.
- Alsidig brug: Velegnet til forskellige industrielle og kommercielle applikationer.
