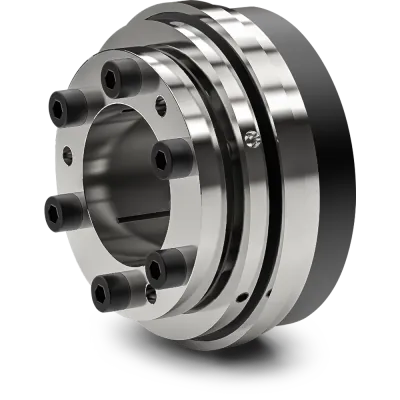

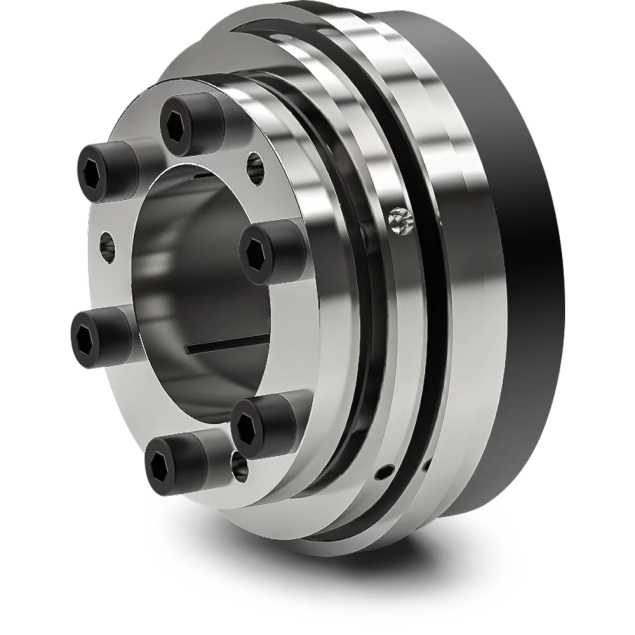

SK1 150 D sikkerhedskobling, justerbart område: 45-150 Nm, hærdet stål og stål
HV3020111516SK1 størrelse 15 sikkerhedskobling med konisk spændebøsning og seks skruer er en pålidelig og højtydende sikkerhedskobling designet til at give optimal sikkerhed og beskyttelse i forskellige industrielle applikationer. Med sine egenskaber og holdbare konstruktion tilbyder denne momentbegrænser ydeevne og ro i sindet.
Specifikationer
Produktbeskrivelse
Downloads
4.287,00 kr.
Ordreproduceret
Forventet afsendelse: 16-11-2024
Specifikationer
Materiale
Hærdet stål og stål
Længde (mm)
58
Max. moment (Nm)
150
Koblingstørrelse
150
Ydre diameter (mm)
Ø92
Boring D1
Ø35mm H7
Beskrivelse
Nøglefunktioner:
- Slidfri drift for en uendelig levetid
- Justerbart drejningsmomentområde fra 45 Nm til 150 Nm, hvilket giver mulighed for alsidige applikationer
- Frakoblingsmoment indstillet til 45 Nm, hvilket sikrer præcis drejningsmomentkontrol og beskyttelse
- Funktionssystem: Multiposition/automatisk genindkobling (D)
Specifikationer:
- Driftstemperaturområde fra -30˚C til +120˚C, hvilket muliggør brug i forskellige miljøer
- Overholder industristandarder for kvalitet og ydeevne
Design og materialer:
- Sikkerhedssystem: hærdet stål
- Konisk spændebøsning: stål
- Seks skruer til sikker og robust fastgørelse
Borespecifikationer:
- Borespecifikationer: Ø35mm H7
Downloads
SK models installation and operating instructions
SK models installation and operating instructions.pdf
Download fil
