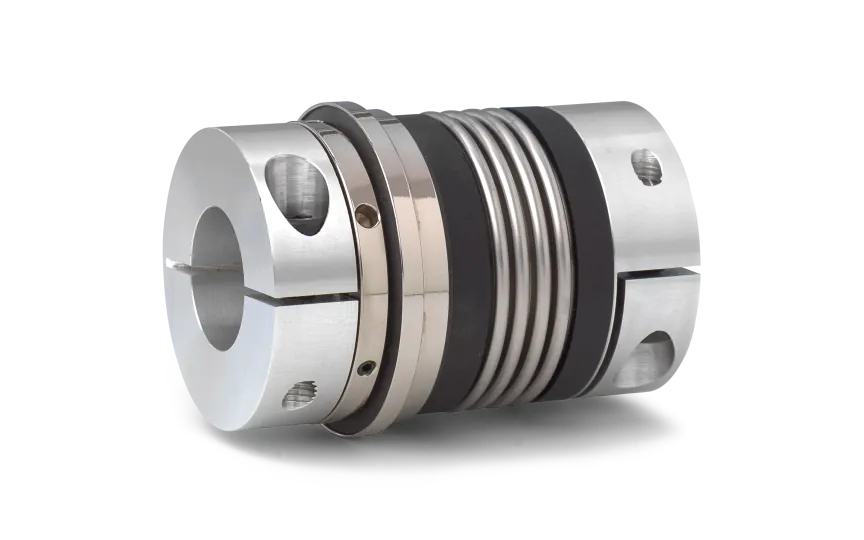

SK2 60 102 W sikkerhedskobling, justerbart område: 25-80Nm, rustfrit stål og aluminium
HV3020121501SK2 2 størrelse 60 sikkerhedskobling med spændenav og bælgkobling er en pålidelig og højtydende kobling designet til forskellige industrielle applikationer. Med sine funktioner og robuste konstruktion sikrer den sikker og effektiv drejningsmomentoverførsel, mens den beskytter dit maskineri og dit udstyr.
Specifikationer
Produktbeskrivelse
Downloads
4.547,00 kr.
Ordreproduceret
Forventet afsendelse: 27-10-2024
Specifikationer
Materiale
Rustfrit stål og aluminium
Længde (mm)
102
Max. moment (Nm)
80
Koblingstørrelse
60
Ydre diameter (mm)
Ø32
Boring D1
Ø25mm H7 med notgang
Boring D2
Ø25mm H7
Beskrivelse
Nøglefunktioner:
- To koniske spændesamlinger med hver seks spændeskruer for sikker og pålidelig forbindelse
- Sikkerhedssystem baseret på det fjederbelastede kuglespærreprincip, der giver en fejlsikker mekanisme
- Funktionelt system med en enkelt position og automatisk genindkobling for nem betjening
- Justeringsområde på 25-80 Nm, tillader præcis drejningsmomentkontrol
- Frakoblingsmoment indstillet til 70 Nm, hvilket sikrer beskyttelse mod for store belastninger
Specifikationer:
- Driftstemperaturområde fra -30°C til +100°C (-22°F til +212°F), hvilket muliggør pålidelig ydeevne i forskellige miljøer
Design og materialer:
- Sikkerhedskoblingen har et robust og kompakt design, der tillader nem installation i trange rum
- Bælgkobling konstrueret med rustfrit stål af høj kvalitet, der giver fleksibilitet og kompenserer for fejljustering
- Spændingsnav fremstillet af letvægtsaluminium, der sikrer effektiv drejningsmomentoverførsel og reduceret inerti
Borespecifikationer:
- Boring D1: Ø25mm H7 med notgang
- Boring D2: Ø25mm H7
Downloads
STEP file: SK2 60 102 W 25 PFN 25 70 25 80 3
STEP file: SK2 60 102 W 25 PFN 25 70 25 80 3.stp
Download fil
SK models installation and operating instructions
SK models installation and operating instructions.pdf
Download fil
