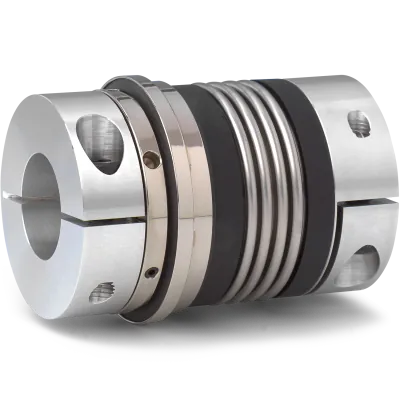

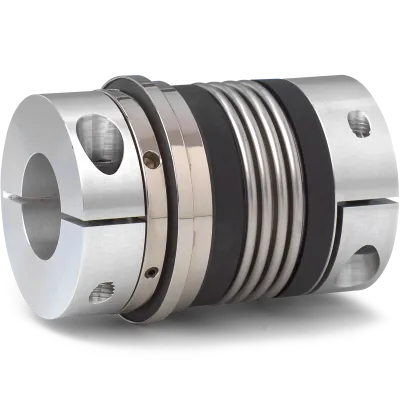

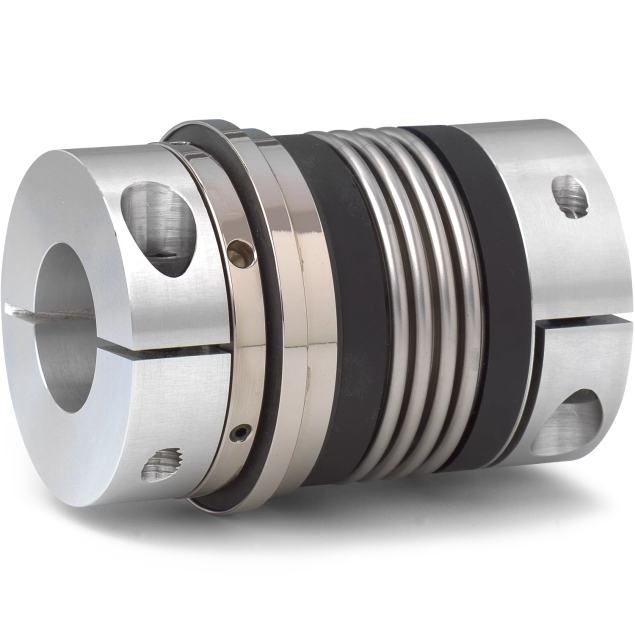

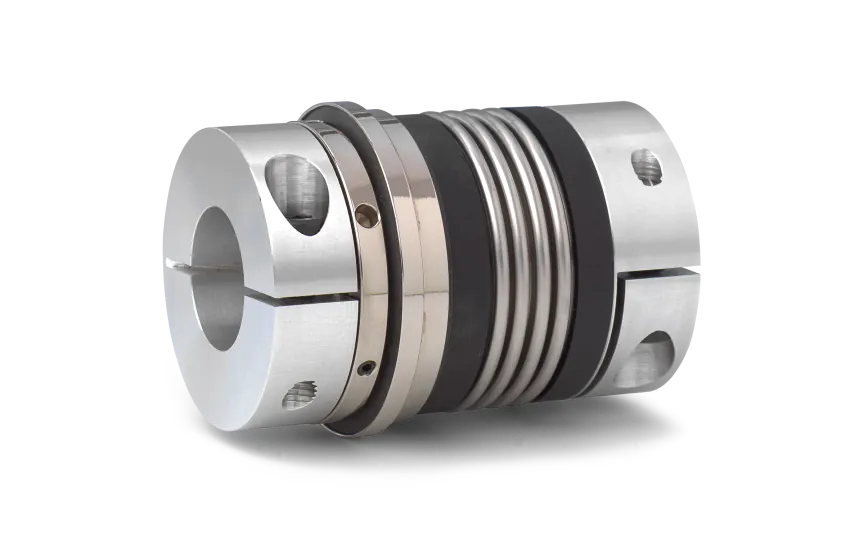

SK2 30 87 F sikkerhedskobling, justerbart område: 16-30 Nm, rustfrit stål og aluminium
HV3020119906SK2 størrelse 30 sikkerhedskobling med spændenav og bælgkobling er en robust og pålidelig enhed designet til at give præcis drejningsmomentkontrol og beskytte dit maskineri mod overbelastning. Med sine avancerede funktioner og materialer af høj kvalitet sikrer den optimal ydeevne i krævende industrielle applikationer.
Specifikationer
Produktbeskrivelse
Downloads
4.859,00 kr.
Ordreproduceret
Forventet afsendelse: 06-11-2024
Specifikationer
Materiale
Rustfrit stål og aluminium
Længde (mm)
87
Max. moment (Nm)
30
Koblingstørrelse
16-30
Ydre diameter (mm)
Ø24,1
Boring D1
Ø15mm H7
Boring D2
Ø16mm H7
Beskrivelse
Nøglefunktioner:
- To koniske spændesamlinger med hver seks spændeskruer sikrer sikker og pålidelig momentoverførsel.
- Sikkerhedssystem baseret på et fjederbelastet kuglespærreprincip øger driftssikkerheden og forhindrer utilsigtet frigørelse.
- Fuld frakobling og manuel genindkoblingsfunktion (F) giver mulighed for nem justering og vedligeholdelse.
Specifikationer:
- Justeringsområde: 16-30 Nm
- Frakoblingsmoment: 9 Nm
- Driftstemperaturområde: -30°C til +100°C (-22°F til +212°F)
Design og materialer:
- Bælge lavet af rustfrit stål af høj kvalitet giver fremragende modstandsdygtighed over for korrosion og sikrer holdbarhed i barske miljøer.
- Sikkerhedssystem fremstillet af hærdet stål garanterer forbedret styrke og lang levetid.
- Klemnav konstrueret af let og holdbart aluminium tilbyder en perfekt balance mellem holdbarhed og vægtoptimering.
Borespecifikationer:
- Boring D1: Ø15mm H7
- Boring D2: Ø16mm H7
Downloads
SK models installation and operating instructions
SK models installation and operating instructions.pdf
Download fil
