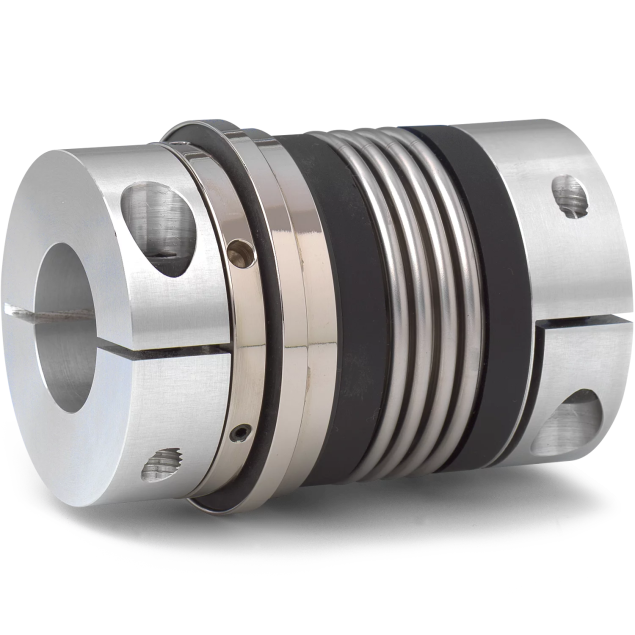

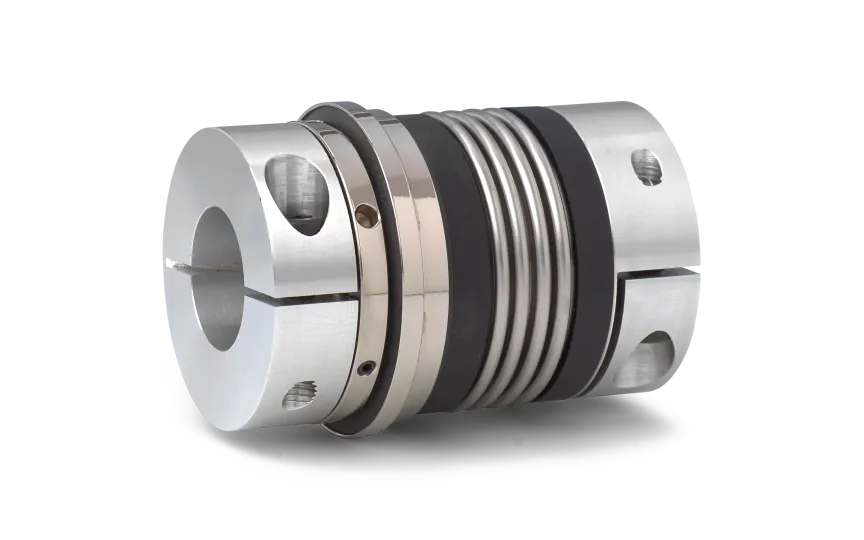

SK2 2 46 12 12 W sikkerhedskobling, justerbart område: 0.2-1.5Nm, rustfrit stål og aluminium
HV3020111502SK2 2 størrelse 46 sikkerhedskobling er en pålidelig og højtydende løsning designet til at give præcis drejningsmomentkontrol i forskellige industrielle applikationer. Med sine nøglefunktioner, specifikationer og robuste design tilbyder den et overlegent niveau af sikkerhed og funktionalitet.
Specifikationer
Produktbeskrivelse
Downloads
1.955,00 kr.
Ordreproduceret
Forventet afsendelse: 01-11-2024
Specifikationer
Materiale
Rustfrit stål og aluminium
Længde (mm)
46
Max. moment (Nm)
1.5
Koblingstørrelse
2
Ydre diameter (mm)
Ø12,1
Boring D1
Ø12mm H7
Boring D2
Ø12mm H7
Beskrivelse
Nøglefunktioner:
- Justeringsområde: Sikkerhedskoblingen har et justerbart område på 0,2 til 1,5 Nm, hvilket giver mulighed for præcise momentindstillinger for at opfylde specifikke krav.
- Koniske spændesamlinger: To koniske spændesamlinger med hver seks spændeskruer sikrer en sikker og pålidelig forbindelse, hvilket minimerer risikoen for at glide eller løsne sig under drift.
- Sikkerhedssystem: Momentbegrænseren inkorporerer et fjederbelastet kuglespærreprincip, der giver et ekstra lag af sikkerhed ved at sikre hurtig og pålidelig udkobling, når det er nødvendigt.
Specifikationer:
- Funktionelt system: Momentbegrænseren fungerer i en enkelt position med automatisk genindkobling som standardtilstand, hvilket muliggør problemfri drift og øget produktivitet.
- Temperaturområde: Driftsområde fra -30°C til +100°C (-22°F til +212°F), hvilket sikrer pålidelig ydeevne i udfordrende miljøer.
Design og materialer:
- Bælgmateriale: Højkvalitets rustfrit stål for fremragende korrosionsbestandighed
- Sikkerhedssystemmateriale: Hærdet stål for overlegen styrke og pålidelighed
- Klemnav: Letvægtsaluminium for nem installation og reduceret vægt
Borespecifikationer:
- Boring D1: Ø12mm H7
- Boring D2: Ø12mm H7
Downloads
SK models installation and operating instructions
SK models installation and operating instructions.pdf
Download fil
