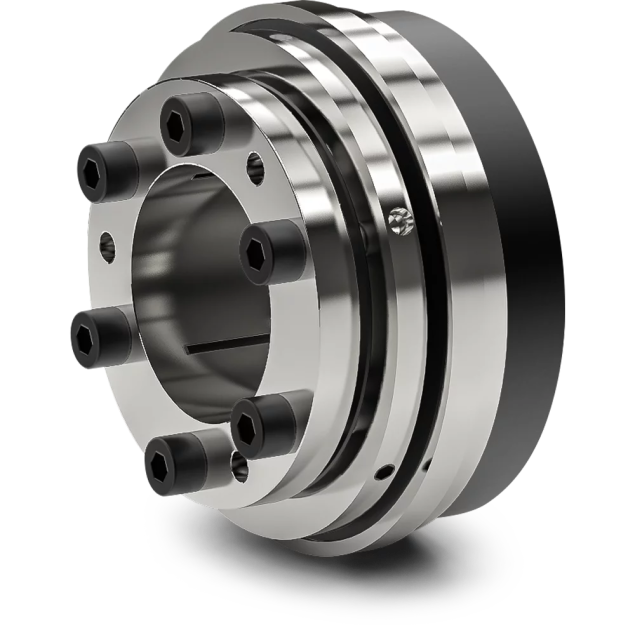

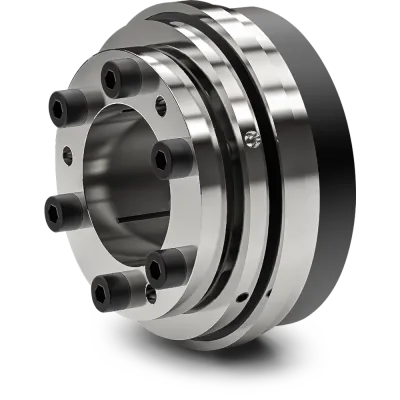

SK1 60 W sikkerhedskobling, justerbart område: 50-115 Nm, hærdet stål og stål
HV3020119904SK1 størrelse 60 sikkerhedskobling med konisk spændebøsning og seks skruer er en højkvalitets og pålidelig sikkerhedskobling designet til at sikre sikkerhed og forhindre overbelastning i forskellige industrielle applikationer. Konstrueret med holdbarhed og ydeevne i tankerne, tilbyder denne momentbegrænser enestående funktioner og specifikationer for optimal ydeevne.
Specifikationer
Produktbeskrivelse
Downloads
3.753,00 kr.
Ordreproduceret
Forventet afsendelse: 06-11-2024
Specifikationer
Materiale
Hærdet stål og stål
Længde (mm)
54
Max. moment (Nm)
115
Koblingstørrelse
60
Ydre diameter (mm)
Ø73
Boring D1
Ø25mm H7
Beskrivelse
Nøglefunktioner:
- Slidfrie sikkerhedskobling for en uendelig levetid (inden for tekniske grænser)
- Justerbart drejningsmomentområde fra 50 Nm til 115 Nm, med udkoblingsmoment indstillet til 80 Nm
- Enkeltposition/automatisk genindkoblingsfunktion som standardfunktion
Specifikationer:
- Driftstemperaturområde: -30°C til +120°C
Design og materialer:
- Sikkerhedskobling har et robust design med materialer af høj kvalitet for langvarig ydeevne og pålidelighed.
- Kroppen er konstrueret med hærdet stål fastspænding, hvilket sikrer holdbarhed og modstandsdygtighed over for slid.
- Den koniske spændebøsning er lavet af stål, hvilket giver sikker og pålidelig drejningsmomentoverførsel.
- Seks skruer til sikker og nem montering
Borespecifikationer:
- Boring D1: Ø25mm H7
Downloads
SK models installation and operating instructions
SK models installation and operating instructions.pdf
Download fil
