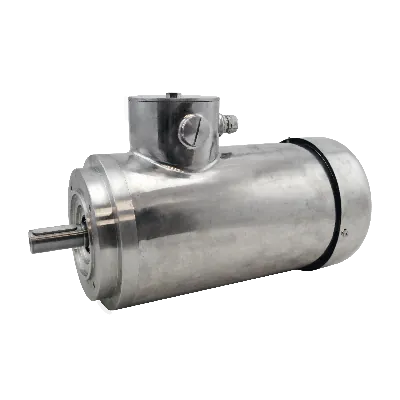

Marlin AC-motor TEFC100LB-4, 3.00kW, 1400RPM, 230/400V, 50Hz, IP66, rustfrit stål
TEFC100LB-4Marlin TEFC100LB-4 AC-motor er en motor i rustfrit stål, med en effekt på 3,00kW og en pålidelig hastighed på 1400RPM. Den er designet til integration med 230/400V strømforsyninger ved 50Hz og er IP66-klassificeret, hvilket sikrer beskyttelse mod støv- og vandindtrængning.
Specifikationer
Produktbeskrivelse
Downloads
16.268,00 kr.
Ordreproduceret
Forventet afsendelse: 12-11-2024
Specifikationer
IP klassificering
IP 66
Producent
Kaiser motoren
Model
TEFC 100LB
Hastighed (RPM)
1400
Nominel udgang (kW)
3
Effektivitet (% FL)
87.7
Spændingstilslutning (Δ/Y)
230/400
Nominel strøm ved spænding
10.57/6.10
Nominel moment (Nm)
19.7
Startstrømsforhold (IA/IN)
7.8
Byggeform
B14
IEC norm
100
BCD
130
Poler
4
Certificeringer
UL, cURus
Effektivitetsklasse
IE3
Akseldiameter (mm)
Ø28
Køling
TEFC
Beskrivelse
Nøglefunktioner:
- Clean-in-Place (CIP)-egenskaber: Motorens design giver mulighed for nem og effektiv rengøring uden behov for adskillelse af motoren.
- IP66-klassificering: Med en IP66-klassificering er motoren beskyttet mod indtrængning af støv og vand.
- Totally Inclosed Fan Cooled (TEFC): TEFC-kabinettet giver beskyttelse mod eksterne elementer.
- Høj effekt: Denne motor leverer en effekt på 3,00kW.
- Jævn og stabil ydeevne: Motoren kører ved 1400RPM og garanterer et ensartet og stabilt output.
- B14 flangemontering: B14 flangen giver mulighed for nem installation og integration i forskellige systemer.
Specifikationer:
- Materiale: Konstrueret af EN 1.4301/AISI 304 rustfrit stål og EN 1672-2.
- Energieffektivitet: Har en IE3 energieffektivitetsvurdering.
- Certificeringer: Motoren har cURus-certificering og er UL-godkendt.
Downloads
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download fil
