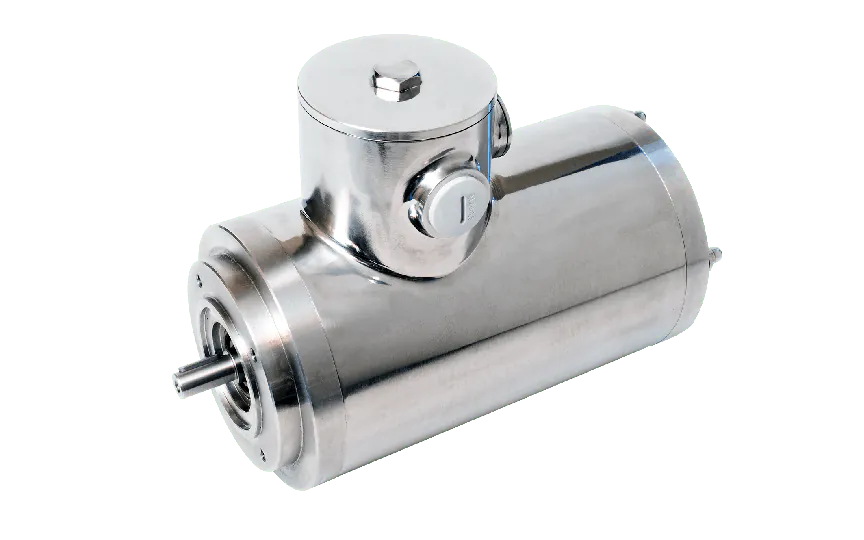

Marlin AC-motor TENV63B-4, 0.18kW, 1400RPM, 230/400V, 50Hz, IP66, rustfrit stål
TENV63B-4Marlin TENV63B-4 AC-motor er en robust og effektiv løsning fremstillet af rustfrit stål. Denne motor er designet til at levere en effekt på 0,18kW ved 1400RPM, hvilket gør den ideel til en lang række industrielle anvendelser. Den fungerer problemfrit på 230/400V strømforsyninger ved standard 50Hz frekvens.
Specifikationer
Produktbeskrivelse
Downloads
5.404,00 kr.
På lager
Forventet afsendelse: 18-10-2024
Specifikationer
IP klassificering
IP 66
Producent
Kaiser motoren
Model
TENV 63B-4
Hastighed (RPM)
1400
Nominel udgang (kW)
0.18
Effektivitet (% FL)
71
Spændingstilslutning (Δ/Y)
230/400
Nominel strøm ved spænding
0.95/0.55
Nominel moment (Nm)
1.25
Startstrømsforhold (IA/IN)
3.8
Byggeform
B14
IEC norm
63
BCD
75
Poler
4
Certificeringer
UL, cURus
Effektivitetsklasse
IE3
Akseldiameter (mm)
Ø11
Køling
TEFC
Beskrivelse
Nøglefunktioner:
- Clean-In-Place (CIP): Letter nem og effektiv rengøring.
- IP66-klassificering: Giver beskyttelse mod støv og vand.
- Helt lukket, ikke-ventileret (TENV): Motorens design sikrer beskyttelse mod eksterne forurenende stoffer.
- Effekt: Med en robust 0,18kW output leverer denne motor ensartet og kraftfuld ydeevne.
- Hastighed: Kører ved 1400RPM sikrer den jævn og effektiv drift til forskellige applikationer.
- B14 flange: Giver mulighed for nem montering og kompatibilitet med en bred vifte af udstyr og maskiner.
Specifikationer:
- Materialer: Konstrueret af EN 1.4301/AISI 304 og EN 1672-2 rustfrit stål.
- Certificering: Har cURus-certificering og er UL-godkendt.
