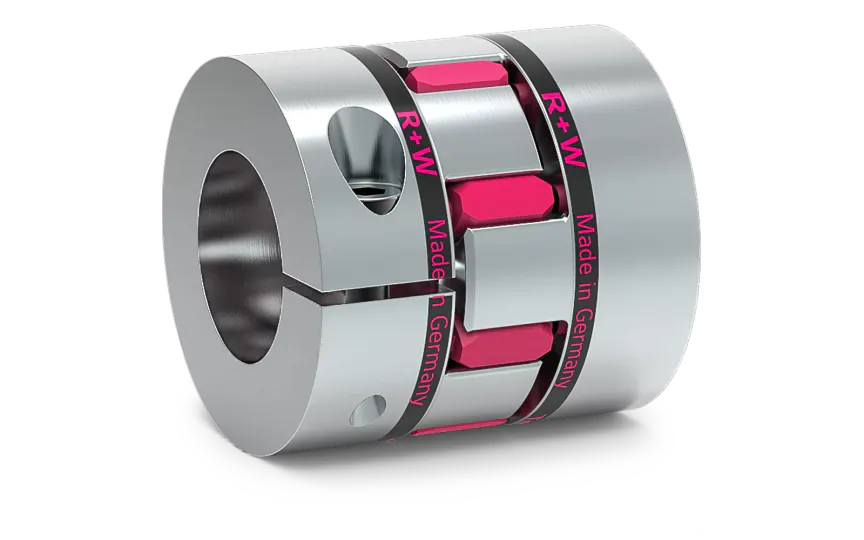

Beskrivelse
Key features:
- Short overall length: The compact design of the EKL size 60 coupling ensures optimal space utilization.
- Easy mounting: The coupling's two concentrically machined hubs with curved jaws and clamping screws on each side.
- Vibration damping: The elastomer insert of the coupling effectively absorbs and dampens vibrations.
Specifications:
- Elastomer type: Type B elastomer
- Shore hardness: 64 Sh D
- Temperature range: -30 °C to +120 °C
Design and materials:
- Hubs: The coupling hubs are precision-machined from steel.
- Elastomer insert: The elastomer insert is made from wear-resistant and thermally stable TPU (Thermoplastic Polyurethane).
Borespecifikationer:
- Boring min: Ø35 mm H7
- Boring max: Ø80 mm H7
Specifikationer
Materiale
Stål og TPU
Længde (mm)
123
Elastomer indsats
A
Max. moment (Nm)
1900
Producent
R+W
Koblingstørrelse
800
Boring max.
Ø80mm H7
Boring min.
Ø35mm H7
Yderdiameter (mm)
Ø136,5
Foreign trade
HS-Kode
84836020
ERP nettovægt (Kg)
10.00
Oprindelsesland
DEU
