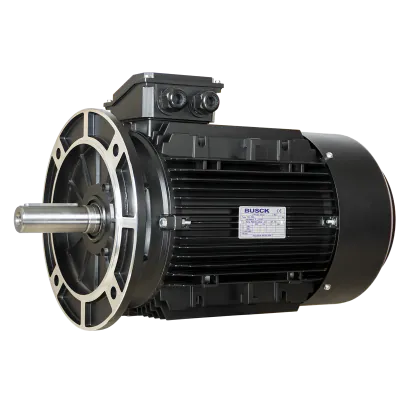

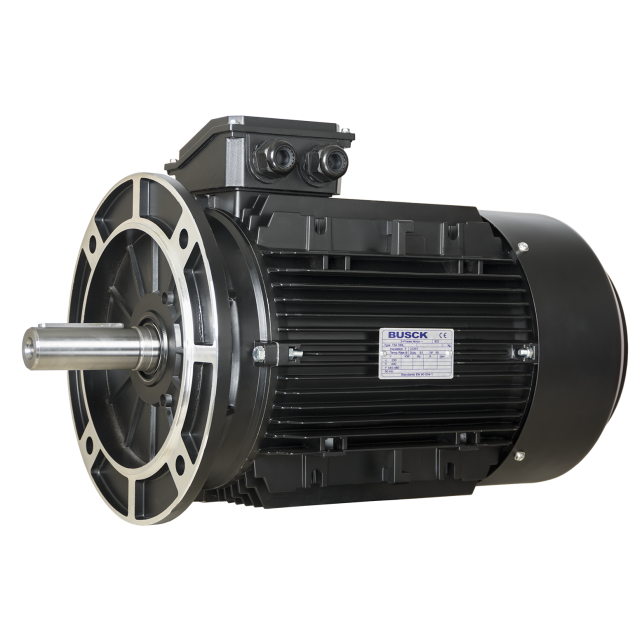

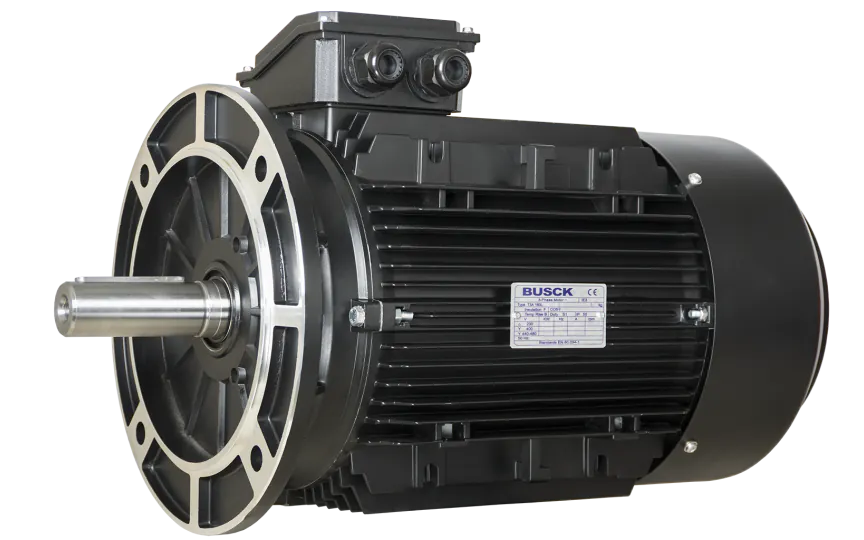

Busck AC-motor T3A160L-8B5, 7.5kW, 720RPM, 400/690V, 50Hz, aluminium
T3A160L-8B5Busck AC-motoren er en 3-faset asynkronmotor, designet til at udmærke sig under barske driftsforhold. Denne elektriske motor er konstrueret med den største præcision og har en række funktioner, der gør den til et ideelt valg til forskellige industrielle applikationer.
Specifikationer
Produktbeskrivelse
Downloads
27.641,00 kr.
På lager
Forventet afsendelse: 17-10-2024
Specifikationer
IP klassificering
IP 55
Producent
Busck
Model
T3A160L-8B5
Hastighed (RPM)
720
Nominel udgang (kW)
7.5
Effektivitet (% FL)
87.3
Spændingstilslutning (Δ/Y)
400/690
Nominel strøm ved spænding
17.7/10.18
Nominel moment (Nm)
99.48
Startstrømsforhold (IA/IN)
6.6
Byggeform
B5
IEC norm
160
BCD
300
Poler
8
Effektivitetsklasse
IE3
Akseldiameter (mm)
Ø42
Køling
TEFC
Beskrivelse
Nøglefunktioner:
- Holdbar konstruktion: Fremstillet af aluminium.
- IP55-klassificering: Giver beskyttelse mod støv og vand, hvilket gør den velegnet til både indendørs og udendørs brug.
- Høj effekt: Har en effekt på 7,5kW, der leverer ensartet og effektiv ydeevne.
- Optimal hastighed: Den kører ved 720RPM og leverer den rette balance mellem hastighed og drejningsmoment til forskellige opgaver.
- Energieffektivitet (IE3): Overholder IE3-standarder.
- Bredt spændingsområde: Kompatibel med strømindgange på 400/690V.
- B5 flange: B5 flangedesignet muliggør nem installation og integration i forskellige udstyrskonfigurationer.
Specifikationer:
- Materiale: Aluminium
- Temperaturområde: -20°C til +40°C
