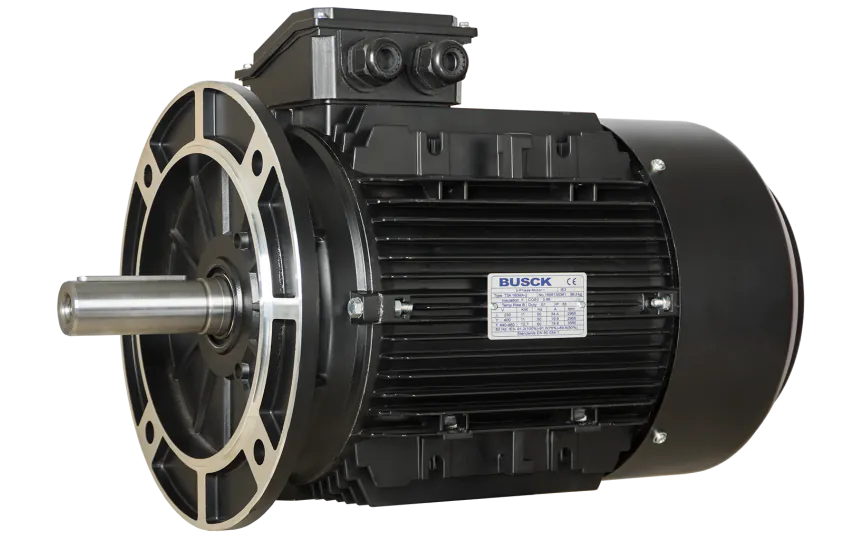

Busck AC-motor T3A160MA-8B5, 4kW, 715RPM, 400/690V, 50Hz, aluminium
T3A160MA-8B5Busck AC-motoren er en 3-faset asynkronmotor, designet til at tåle krævende miljøer. Udformet med høj kvalitet materialer garanterer denne motor ydeevne og lang levetid.
Specifikationer
Produktbeskrivelse
Downloads
22.623,00 kr.
På lager
Forventet afsendelse: 17-10-2024
Specifikationer
IP klassificering
IP 55
Producent
Busck
Model
T3A160MA-8B5
Hastighed (RPM)
715
Nominel udgang (kW)
4
Effektivitet (% FL)
84.8
Spændingstilslutning (Δ/Y)
400/690
Nominel strøm ved spænding
9.73/5.59
Nominel moment (Nm)
53.43
Startstrømsforhold (IA/IN)
5
Byggeform
B5
IEC norm
160
BCD
300
Poler
8
Effektivitetsklasse
IE3
Akseldiameter (mm)
Ø42
Køling
TEFC
Beskrivelse
Nøglefunktioner:
- IP55-klassificering: Giver beskyttelse mod støv og vand, hvilket gør den velegnet til forskellige miljøer.
- Høj effekt: Med en nominel effekt på 4kW leverer den ydeevne i enhver applikation.
- Høj effektivitet: IE3 hvilket sikrer energieffektivitet og reducerede driftsomkostninger.
- Fleksible spændingsmuligheder: Velegnet til 400V og 690V strømforsyningssystemer, hvilket sikrer kompatibilitet i forskellige opsætninger.
- B5 flange: Giver mulighed for nem montering og integration i forskellige mekaniske systemer.
Specifikationer:
- Bredt temperaturområde: -20°C til +40°C.
- Aluminiumskonstruktion: Let, men alligevel robust aluminiumshus.
