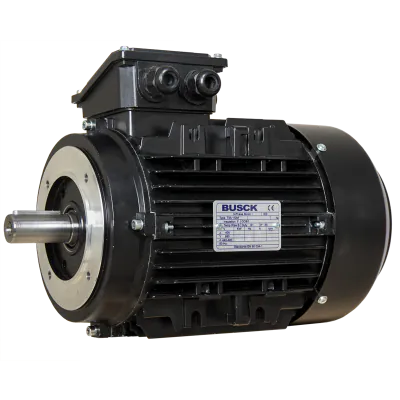

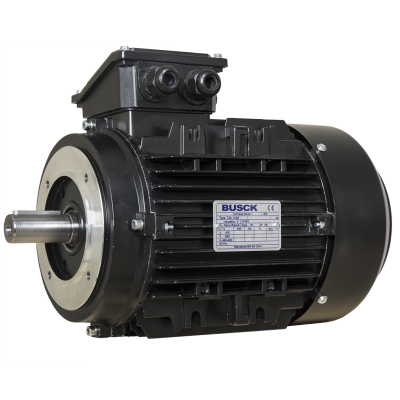

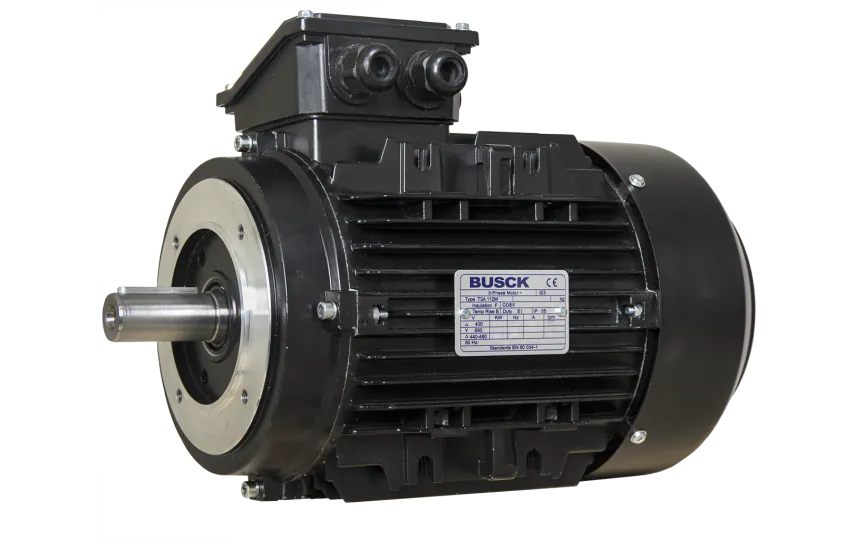

Busck AC-motor T3A112M-2, 4kW, 2920RPM, 400/690V, 50Hz, aluminium
T3A112M-2Busck AC-motoren er en 3-faset asynkronmotor, designet til at levere ydeevne og samtidig modstå de hårde forhold. Denne motor er lavet med robuste materialer og præcisionsteknik.
Specifikationer
Produktbeskrivelse
Downloads
6.876,00 kr.
På lager
Forventet afsendelse: 23-10-2024
Specifikationer
IP klassificering
IP 55
Producent
Busck
Model
T3A112M-2
Hastighed (RPM)
2920
Nominel udgang (kW)
4
Effektivitet (% FL)
88.1
Spændingstilslutning (Δ/Y)
400/690
Nominel strøm ved spænding
7.2/4.14
Nominel moment (Nm)
13.08
Startstrømsforhold (IA/IN)
10.5
Byggeform
B14
IEC norm
112
BCD
130
Poler
2
Effektivitetsklasse
IE3
Akseldiameter (mm)
Ø28
Køling
TEFC
Beskrivelse
Nøglefunktioner:
- IP55-klassificering: Med en IP55-klassificering er motoren beskyttet mod indtrængning af støv og vand.
- Høj effekt: Med en effekt på 4kW leverer denne motor ensartet og kraftfuld ydeevne til dine industrielle behov.
- Høj hastighed: Motoren kører ved 2920RPM og sikrer effektiv og hurtig drift.
- Bredt spændingsområde: Motoren understøtter et spændingsområde på 400/690V, hvilket giver fleksibilitet i forskellige strømforsyningsmiljøer.
- B14 flangemontering: B14 flangen giver mulighed for nem og sikker montering, hvilket forenkler installationsprocesserne.
- Høj energieffektivitet: Denne motor opnår en IE3 effektivitetsklasse og hjælper med at spare energi og reducere driftsomkostningerne.
Specifikationer:
- Robust konstruktion: Motorens har et holdbare aluminiumshus.
- Temperaturfasthed: -20°C til +40°C.
