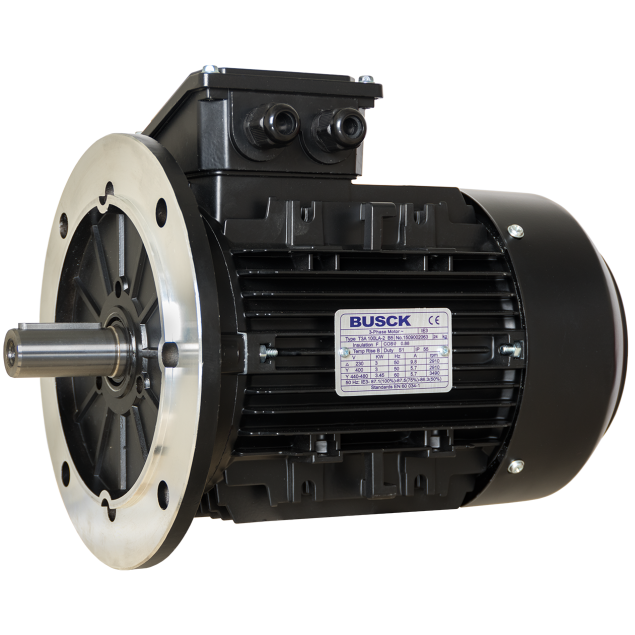

Busck AC-motor T3A100LB-4B5, 3kW, 1450RPM, 230/400V, 50Hz, aluminium
T3A100LB-4B5Busck AC-motor 3kW 1450RPM 230/400V B5 er en 3-faset asynkronmotor i aluminium, der kan bruges til forskellige industrielle applikationer. Den har en høj effektivitetsklasse (IE3), et standardkabinet (IP55) og et kølesystem (IC411). Den kan fungere ved forskellige spændinger og frekvenser og har et startmoment på 3,3.
Specifikationer
Produktbeskrivelse
Downloads
6.336,00 kr.
På lager
Forventet afsendelse: 17-10-2024
Specifikationer
IP klassificering
IP 55
Producent
Busck
Model
T3A100LB-4B5
Hastighed (RPM)
1400
Nominel udgang (kW)
3
Effektivitet (% FL)
87.7
Spændingstilslutning (Δ/Y)
230/400
Nominel strøm ved spænding
10.96/6.3
Nominel moment (Nm)
19.76
Startstrømsforhold (IA/IN)
8.1
Byggeform
B5
IEC norm
100
BCD
215
Poler
4
Effektivitetsklasse
IE3
Akseldiameter (mm)
Ø28
Køling
TEFC
Beskrivelse
Nøglefunktioner:
- IP55-klassificering: Giver pålidelig beskyttelse mod støv og vand og beskytter motoren mod eksterne forurenende stoffer.
- Høj effekt: Med en nominel effekt på 3kW leverer denne motor ensartet og kraftfuld ydeevne.
- Høj hastighed: Den kører ved 1450RPM.
- Energieffektivitet: Motoren er klassificeret IE3 og overholder høje energieffektivitetsstandarder.
- B5 flange: Letter nem montering og integration i forskellige maskinopsætninger.
Specifikationer:
- Materiale: Aluminium
- Temperaturområde: -20°C til +40°C
