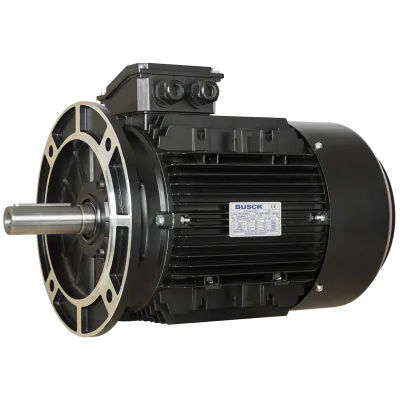

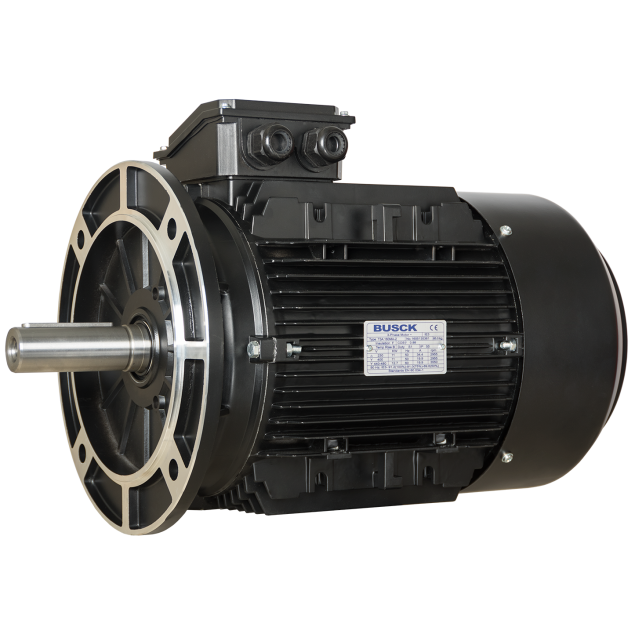

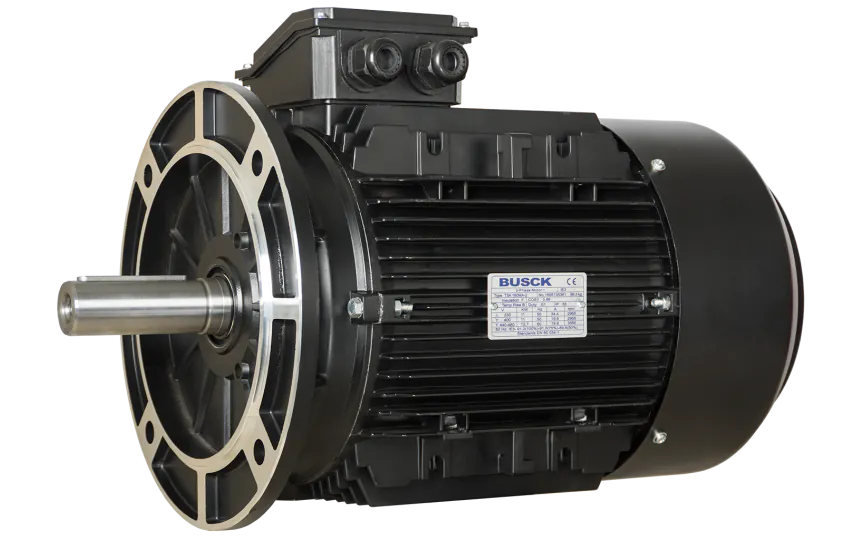

Busck AC-motor T3A160MA-2B5, 11kW, 2960RPM, 400/690V, 50Hz, aluminium
T3A160MA-2B5Busck AC-motoren er en 3-faset asynkronmotor, designet til at udmærke sig i krævende industrielle miljøer. Med sin robuste konstruktion og ydeevne garanterer den pålidelig og effektiv drift i en lang række applikationer.
Specifikationer
Produktbeskrivelse
Downloads
18.036,00 kr.
På lager
Forventet afsendelse: 23-10-2024
Specifikationer
IP klassificering
IP 55
Producent
Busck
Model
T3A160MA-2B5
Hastighed (RPM)
2960
Nominel udgang (kW)
11
Effektivitet (% FL)
91.2
Spændingstilslutning (Δ/Y)
400/690
Nominel strøm ved spænding
19.8/11.37
Nominel moment (Nm)
35.49
Startstrømsforhold (IA/IN)
10.3
Byggeform
B5
IEC norm
160
BCD
300
Poler
2
Effektivitetsklasse
IE3
Akseldiameter (mm)
Ø42
Køling
TEFC
Beskrivelse
Nøglefunktioner:
- Høj ydeevne: Denne motor, der leverer en effekt på 11kW og kører med jævne 2960RPM.
- IP55-klassificering: Med en IP55-klassificering er motoren beskyttet mod indtrængning af støv og vand, hvilket gør den velegnet til både indendørs og udendørs brug.
- Bredt spændingsområde: Motoren er kompatibel med strømforsyninger fra 400V til 690V.
- B5 flangemontering: B5 flangen giver mulighed for nem og sikker montering af motoren i en række forskellige anvendelser.
- Høj effektivitet: I overensstemmelse med IE3 standarderne sikrer denne motor energieffektivitet, reducerer driftsomkostninger og miljøpåvirkning.
Specifikationer:
- Robust konstruktion: Busck AC-motoren er bygget i aluminium.
- Temperaturbestandig: -20°C til +40°C.
