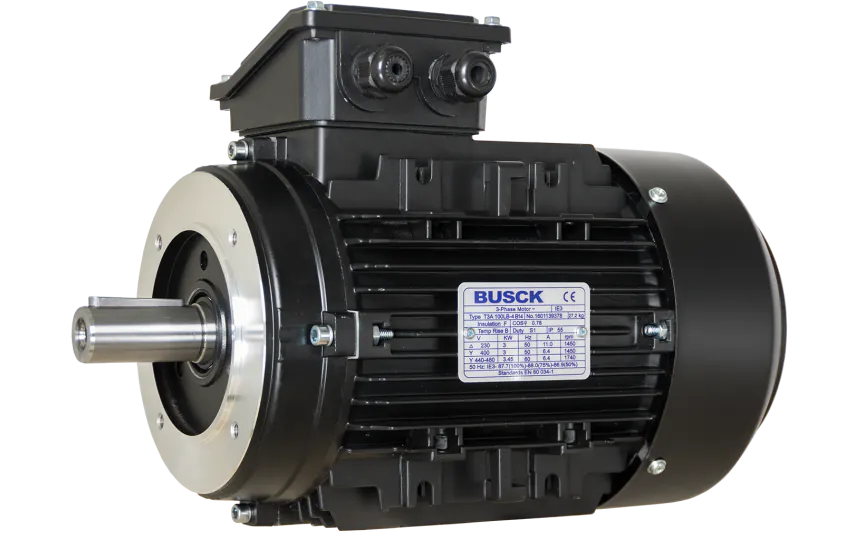

Busck AC-motor T3A100LA-8, 0.75kW, 710RPM, 230/400V, 50Hz, aluminium
T3A100LA-8Busck AC-motoren er en 3-faset asynkronmotor, designet til at modstå krævende industrielle applikationer. Denne elektriske motor er fremstillet med materialer af høj kvalitet og garanterer pålidelig og effektiv ydeevne i udfordrende miljøer.
Specifikationer
Produktbeskrivelse
Downloads
6.237,00 kr.
På lager
Forventet afsendelse: 17-10-2024
Specifikationer
IP klassificering
IP 55
Producent
Busck
Model
T3A100LA-8
Hastighed (RPM)
710
Nominel udgang (kW)
0.75
Effektivitet (% FL)
75
Spændingstilslutning (Δ/Y)
230/400
Nominel strøm ved spænding
3.93/2.26
Nominel moment (Nm)
10.09
Startstrømsforhold (IA/IN)
5.1
Byggeform
B14
IEC norm
100
BCD
130
Poler
8
Effektivitetsklasse
IE3
Akseldiameter (mm)
Ø28
Køling
TEFC
Beskrivelse
Nøglefunktioner:
- IP55-klassificering: Giver beskyttelse mod støv og vand, hvilket gør den velegnet til både indendørs og udendørs installationer.
- Høj effekt: Har en nominel effekt på 0,75kW.
- Optimal hastighed: Kører ved 710RPM.
- Spændingsmuligheder: Kompatibel med både 230V og 400V strømforsyning, hvilket sikrer fleksibilitet i forskellige driftsindstillinger.
- B14 flange: Udstyret med en B14 flange, der muliggør nem installation og integration i eksisterende systemer.
- IE3 effektivitet: Opfylder IE3 effektivitetsstandarder.
Specifikationer:
- Holdbar konstruktion: Bygget med en robust aluminiumsramme.
- Bredt temperaturområde: -20°C til +40°C.
