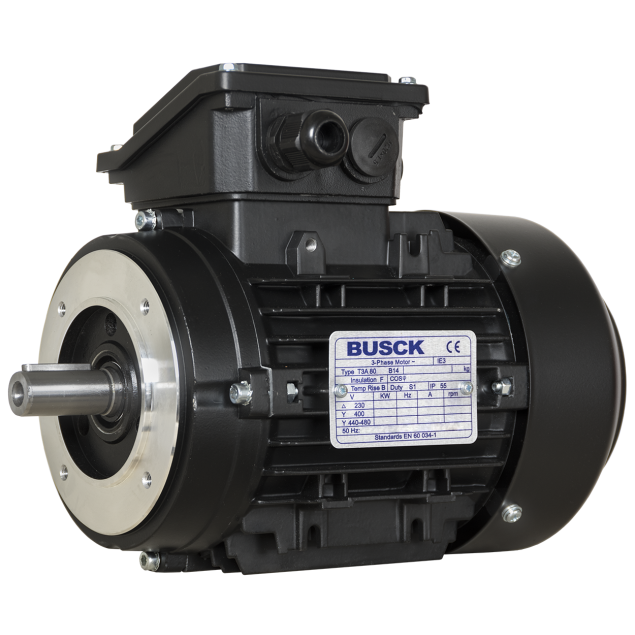

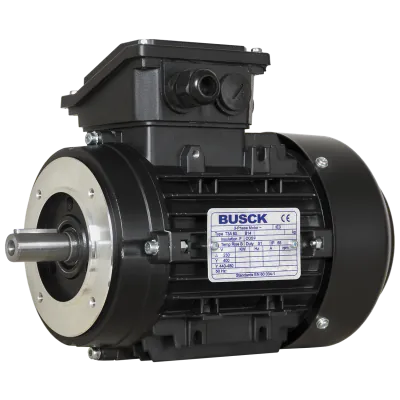

Busck AC-motor T3A80B-4 0.75kW, 1430RPM, 230/400V, 50Hz, aluminium
T3A80B-4Busck AC-motoren er en kraftfuld og alsidig 3-faset asynkronmotor, designet til at udmærke sig under krævende forhold. Denne motor er udformet til at modstå barske miljøer og tilbyder pålidelig og effektiv ydeevne i forskellige industrielle applikationer. Dens egenskaber gør den til et ideelt valg til en lang række opgaver.
Specifikationer
Produktbeskrivelse
Downloads
2.826,00 kr.
På lager
Forventet afsendelse: 24-10-2024
Specifikationer
IP klassificering
IP 55
Producent
Busck
Model
T3A80B-4
Hastighed (RPM)
1430
Nominel udgang (kW)
0.75
Effektivitet (% FL)
82.5
Spændingstilslutning (Δ/Y)
230/400
Nominel strøm ved spænding
3.13/1.8
Nominel moment (Nm)
4.97
Startstrømsforhold (IA/IN)
6.3
Byggeform
B14
IEC norm
80
BCD
100
Poler
4
Effektivitetsklasse
IE3
Akseldiameter (mm)
Ø19
Køling
TEFC
Beskrivelse
Nøglefunktioner:
- IP55-klassificering: Giver beskyttelse mod indtrængning af støv og vand, hvilket gør den velegnet til både indendørs og udendørs brug.
- Høj effekt: Har en effekt på 0,75kW, der leverer ensartet og effektiv ydeevne.
- Optimal hastighed: Kører ved 1430RPM og skaber en balance mellem kraft og hastighed til alsidige applikationer.
- Spændingsmuligheder: Kompatibel med både 230V og 400V strømforsyninger, hvilket giver fleksibilitet i elektriske opsætninger.
- B14 flange: Designet med en B14 flange for nem installation og kompatibilitet med forskelligt udstyr.
- Høj effektivitet: IE3 effektivitetsklassificering, der sikrer minimalt energitab under drift.
Specifikationer:
- Robust konstruktion: Konstrueret med aluminium.
- Bredt temperaturområde: -20°C til +40°C.
