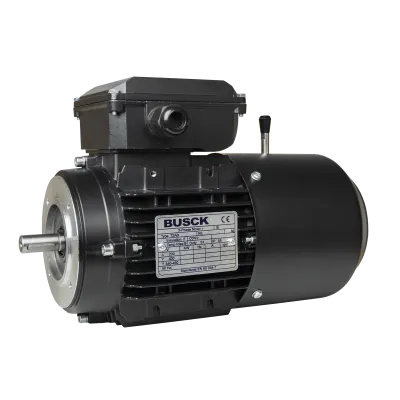

Busck AC-bremsemotor T3AB132MB-6, 5.5kW, 975RPM, 400/690V, 50Hz, aluminium
T3AB132MB-6Busck AC-bremsemotor er en løsning, der tilbyder pålidelighed, sikkerhed og imponerende bremseydelse. Designet med materialer af høj kvalitet og avanceret teknologi, denne motor er bygget til at udmærke sig i en lang række applikationer, hvilket sikrer jævn og sikker drift
Specifikationer
Produktbeskrivelse
Downloads
22.005,00 kr.
På lager
Forventet afsendelse: 17-10-2024
Specifikationer
IP klassificering
IP 55
Producent
Busck
Model
T3AB132MB-6
Hastighed (RPM)
975
Nominel udgang (kW)
5.5
Effektivitet (% FL)
88
Spændingstilslutning (Δ/Y)
400/690
Nominel strøm ved spænding
12.7/7.3
Nominel moment (Nm)
53.87
Startstrømsforhold (IA/IN)
7.4
Byggeform
B14
IEC norm
132
BCD
165
Poler
6
Effektivitetsklasse
IE3
Akseldiameter (mm)
Ø38
Køling
TEFC
Beskrivelse
Nøglefunktioner:
- IP55-klassificering: Motoren har en IP55-klassificering, der giver beskyttelse mod indtrængning af støv og vand, hvilket gør den velegnet til udfordrende miljøer.
- Kraftfuld ydeevne: Med en 5,5kW effekt og en hurtig 975 RPM hastighed leverer denne motor den nødvendige muskel til at tackle krævende opgaver effektivt.
- Bredt spændingsområde: Motoren fungerer ved både 400V og 690V, hvilket giver fleksibilitet i forskellige elektriske opsætninger.
- B14 flange: B14 flangedesignet sikrer nem montering og integration i eksisterende systemer, hvilket sparer tid og kræfter under installationen.
- Højt bremsemoment: Udstyret med et bremsemoment på 100 Nm garanterer motoren hurtig og pålidelig bremsning, når det er nødvendigt.
- Energieffektiv: I overensstemmelse med IE3 effektivitetsstandarder minimerer denne motor energiforbruget.
Specifikationer:
- Aluminiumskonstruktion: Motoren har en robuste aluminiumskonstruktion.
- Alsidigt temperaturområde: -20°C til +40°C.
