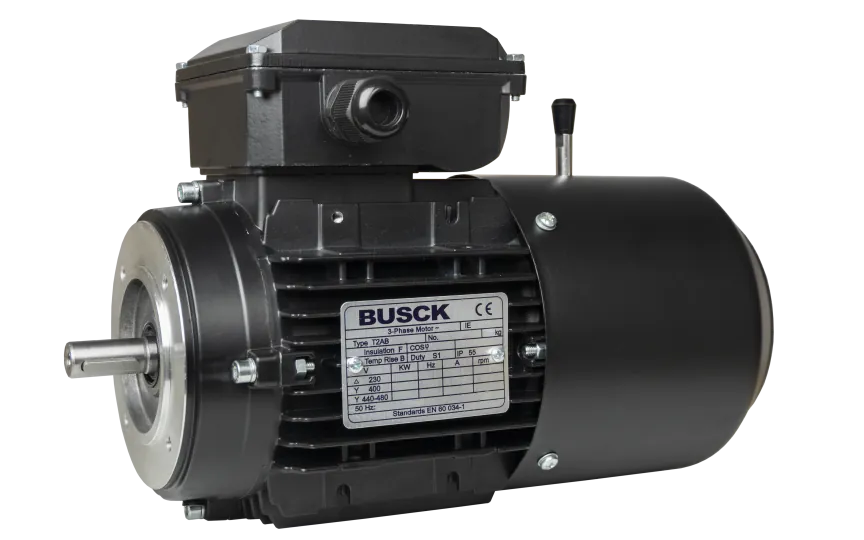

Busck AC-bremsemotor T2AB90S-8, 0.37kW, 710RPM, 230/400V, 50Hz, aluminium
T2AB90S-8Busck AC-bremsemotor er en højtydende motor designet til optimal pålidelighed, driftssikkerhed og hurtig bremsning. Med sin robuste konstruktion og avancerede funktioner er denne motor velegnet til en lang række anvendelser, hvilket gør den til et ideelt valg til forskellige industrier.
Specifikationer
Produktbeskrivelse
Downloads
10.224,00 kr.
På lager
Forventet afsendelse: 17-10-2024
Specifikationer
IP klassificering
IP 55
Producent
Busck
Model
T2AB90S-8
Hastighed (RPM)
710
Nominel udgang (kW)
0.37
Effektivitet (% FL)
65
Spændingstilslutning (Δ/Y)
230/400
Nominel strøm ved spænding
2.47/1.42
Nominel moment (Nm)
1.7
Startstrømsforhold (IA/IN)
3.2
Byggeform
B14
IEC norm
90
BCD
115
Poler
8
Effektivitetsklasse
IE2
Akseldiameter (mm)
Ø24
Køling
TEFC
Beskrivelse
Nøglefunktioner:
- IP55-klassificering: Med en IP55-klassificering er motoren godt beskyttet mod støv og vand.
- 0,37kW udgangseffekt: Motoren har en effekt på 0,3kW, der leverer effektiv ydeevne til forskellige belastningskrav.
- 710 RPM hastighed: Motoren kører med 710 omdrejninger i minuttet og giver ensartet og præcis hastighedskontrol.
- 230/400V spænding: Motoren understøtter både 230V og 400V spændingsindgang, hvilket gør den tilpasselig til forskellige strømsystemer.
- B14 flange: B14 flangedesignet sikrer nem og sikker montering, hvilket forenkler installationsprocessen.
- Bremsemoment 16 Nm: Motorens høje bremsemoment på 16 Nm garanterer hurtig og pålidelig standsning, hvilket øger sikkerheden under drift.
- IE2 effektivitet: Med en IE2 effektivitetsklasse fremmer motoren energibesparelser og reduceret miljøpåvirkning.
Specifikationer:
- Aluminiumskonstruktion: Motorens har et aluminiumshus.
- Temperaturområde: -20°C til +40°C.
