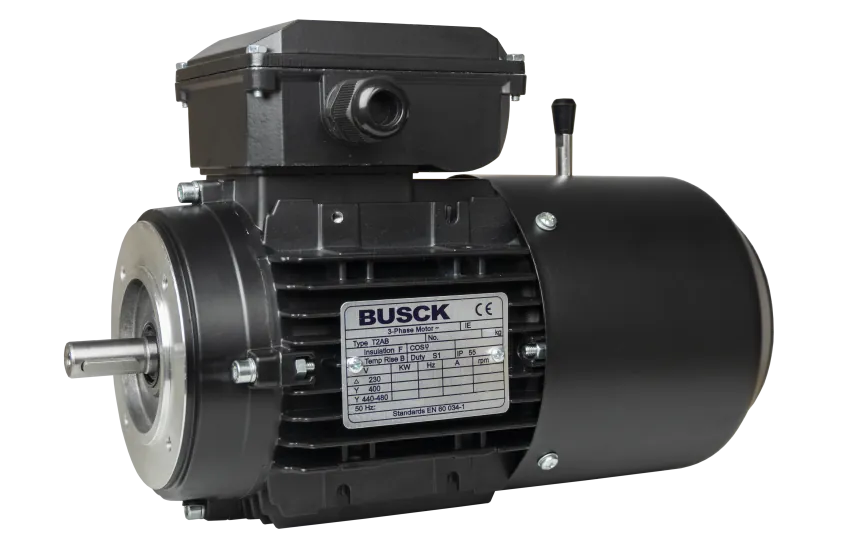

Busck AC-bremsemotor T2AB90L-8, 0.55kW, 705RPM, 230/400V, 50Hz, aluminium
T2AB90L-8Busck AC-bremsemotor er en motor designet til optimal pålidelighed, driftssikkerhed og hurtig bremsning. Med sin robuste konstruktion og avancerede funktioner er denne motor velegnet til en lang række anvendelser, hvilket gør den til et ideelt valg til forskellige industrier.
Specifikationer
Produktbeskrivelse
Downloads
10.548,00 kr.
På lager
Forventet afsendelse: 17-10-2024
Specifikationer
IP klassificering
IP 55
Producent
Busck
Model
T2AB90L-8
Hastighed (RPM)
705
Nominel udgang (kW)
0.55
Effektivitet (% FL)
65
Spændingstilslutning (Δ/Y)
230/400
Nominel strøm ved spænding
3.67/2.11
Nominel moment (Nm)
1.9
Startstrømsforhold (IA/IN)
3.4
Byggeform
B14
IEC norm
90
BCD
115
Poler
6
Effektivitetsklasse
IE2
Akseldiameter (mm)
Ø24
Køling
TEFC
Beskrivelse
Nøglefunktioner:
- IP55-klassificering: Med en IP55-klassificering er motoren effektivt beskyttet mod støv og vand, hvilket forbedrer dens levetid og ydeevne i udfordrende miljøer.
- 0,55 kW effekt: Motoren har en 0,55kW effekt, der leverer ydeevne til at opfylde krævende krav.
- 705 RPM hastighed: Kører ved 705 RPM, denne motor giver ensartet og effektiv rotationshastighed til forskellige applikationer.
- 230/400V spænding: Motoren arbejder ved et alsidigt spændingsområde.
- B14 flange: Med en B14 flange er motorens montering sikker og ligetil, hvilket sikrer en stabil forbindelse.
- Bremsemoment 16Nm: Motorens betydelige bremsemoment på 16 m garanterer hurtig og pålidelig standsning.
- IE2 effektivitetsklasse: Med en IE2 effektivitetsklasse demonstrerer denne motor høj energieffektivitet.
Specifikationer:
- Aluminiumskonstruktion: Motoren har en aluminiumskonstruktion..
- Temperaturområde: -20°C til +40°C.
