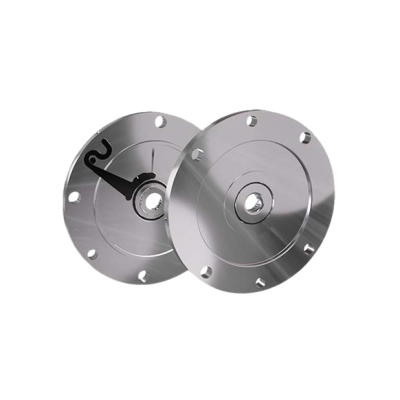

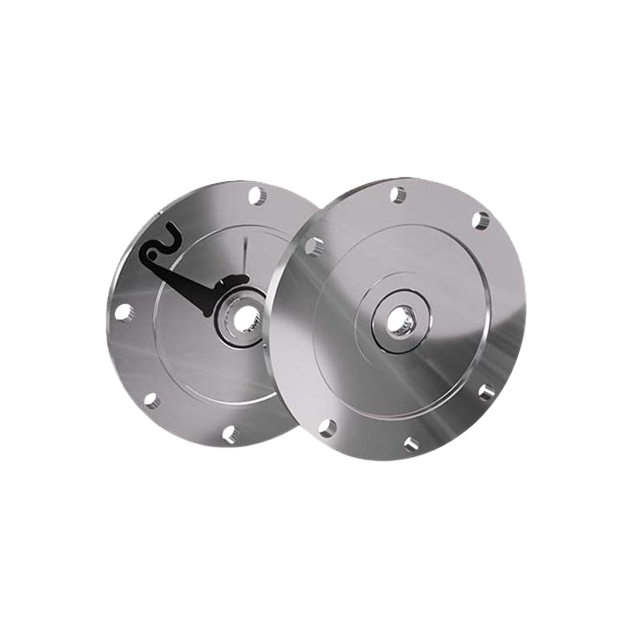

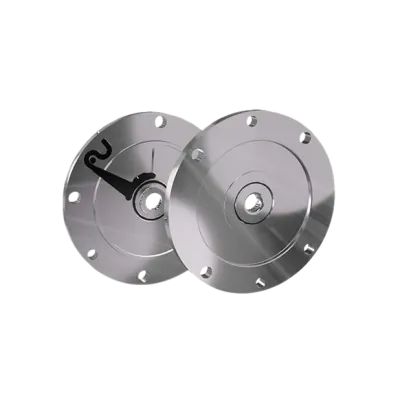

BEGE flangeencoder MNV2A-105-14-005075, 50 pulser, 5m kabel, rustfrit stål
HV500511BEGE MIG SS flangeencoder 105-14, 50 impulser, 5m kabel, rustfrit stål er en type magnetisk rotationsencoder, der er designet til præcis positionering i industrielle automatiseringssystemer. Den er kompatibel med næsten alle styringer og passer på alle IEC-standardiserede elmotorer..
Specifikationer
Produktbeskrivelse
Downloads
3.800,00 kr.
Ordreproduceret
Forventet afsendelse: 12-11-2024
Specifikationer
IP klassificering
IP 55
Pulser
50
Yderdiameter (mm)
Ø105
Flangetykkelse (mm)
7
Materiale
Rustfrit stål
Kabellængde (m)
5
Akseldiameter (mm)
Ø14
BCD norm
85
Beskrivelse
Nøglefunktioner:
- Universel kompatibilitet: Passer til enhver IEC-standard elektrisk motor, hvilket sikrer nem integration i eksisterende systemer.
- Kontaktløs signalmåling: Giver stabil og pålidelig signalmåling uden fysisk kontakt, hvilket sikrer nøjagtige aflæsninger.
- Robust beskyttelse: Tilbyder beskyttelse mod støv, væsker og korrosion, hvilket garanterer lang levetid og pålidelig ydeevne.
- Vandtæt og stødsikker: Med stød- og vandmodstand kan denne encoder modstå strenge rengøringsprocesser og udfordrende driftsforhold.
- Højtryksrensning: Egnet til miljøer, der kræver højtryksrensning.
- IP Klassifikation: Standard ved IP55; muligheden for en opgradering til IP67 er opnåelig, afhængig af det valgte tætningsmiddel mellem motoren og maskinflangen.
Specifikationer:
- Til motorflange: B14.
- Temperaturområde: -30°C til +80°C.
Materialer:
- Flange: Konstrueret af rustfrit stål af høj kvalitet.
- Nav: Lavet af holdbart rustfrit stål.
