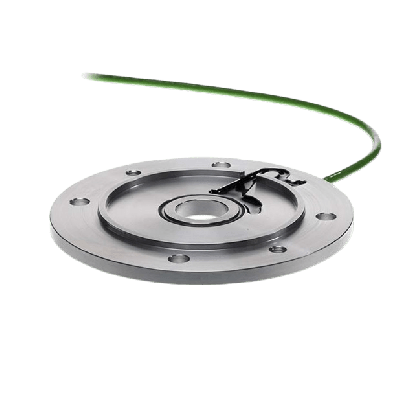

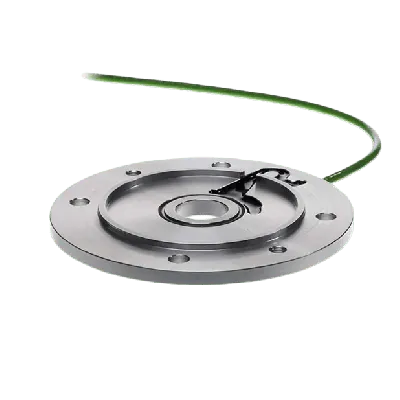

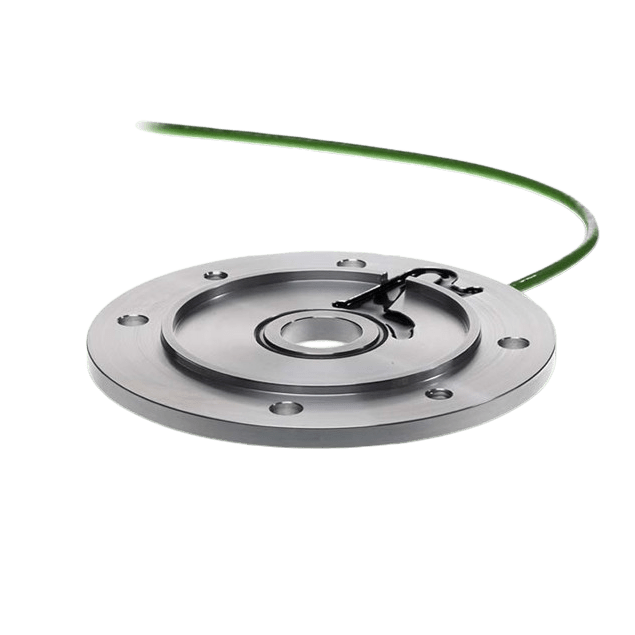

BEGE flangeencoder MN-090-11-00087, 8 pulser, 2m kabel, aluminium
HV500040BEGE flangeencoder MIG NOVA+ er en inkrementel encoder. Den er designet til at opfylde kravene i præcisionsdrevne miljøer, hvor hygiejne er af stor vigtighed.
Specifikationer
Produktbeskrivelse
Downloads
3.095,00 kr.
På lager
Forventet afsendelse: 18-10-2024
Specifikationer
IP klassificering
IP 55
Pulser
8
Yderdiameter (mm)
Ø90
Flangetykkelse (mm)
7
Materiale
Aluminium
Kabellængde (m)
2
Akseldiameter (mm)
Ø11
BCD norm
75
Beskrivelse
Nøglefunktioner:
- Magnetisk roterende encoder til nøjagtig og pålidelig signalmåling.
- Høj signalkvalitet og præcis signalbehandling for optimal ydeevne.
- Kompatibel med IEC-standard elektriske motorer, hvilket sikrer alsidighed og nem installation.
- Berøringsfri signalmålingsteknologi for forbedret stabilitet og lang levetid.
- Den starter med en standard IP55-klassificering og kan hæves til IP67 afhængigt af tætningsmidlet mellem motoren og maskinflangen.
- Mellemflange fjerner behovet for et udvidet ventilatordæksel, hvilket forenkler installations- og vedligeholdelsesprocesser.
Specifikationer:
- Til motorflange: B14.
- Temperaturområde: -30°C til +80°C.
Materialer:
- Flange: Konstrueret af slidstærkt aluminium.
- Nav: Fremstillet af rustfrit stål.
