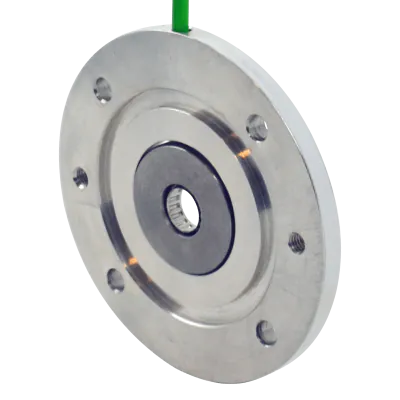

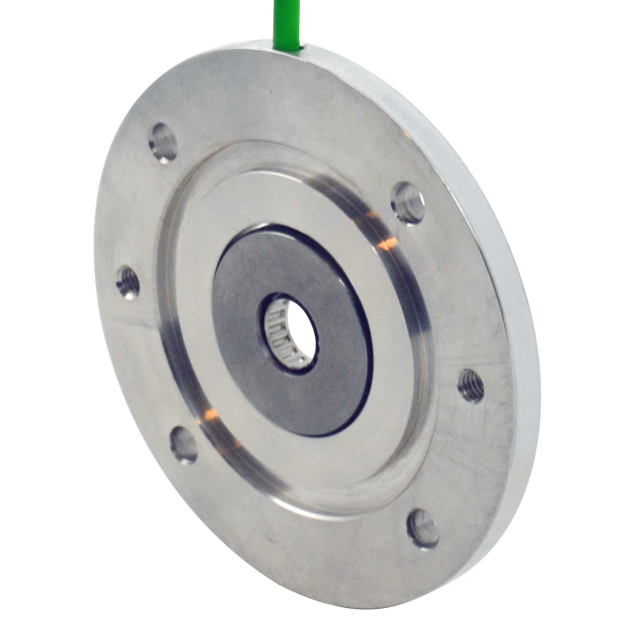

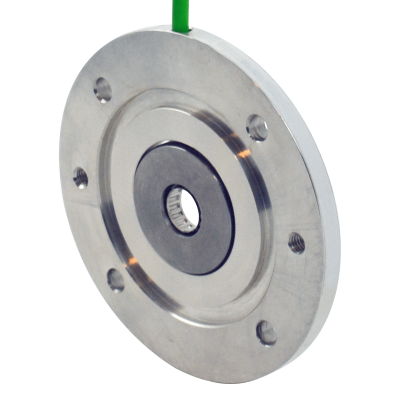

BEGE flange encoder MIG Nova+ MN-120-09-0128-7, 128 pulses, 100m cable, aluminium
HV52A12009012807100The MIG Nova+ is an incremental encoder with higher resolution and improved signal stability, suited for accurate speed and position feedback in automated systems.Flange outside diameter: 120mm Flange BCD: 100mm Flange thickness: 7mm Shaft diameter: 9mm Norm/Specification: IEC 56B5 Pulses per revolution: 128 per channel Output: A90°B / A'90°B' HTL/TTL Input voltage: 5–24V DC Material: Aluminium IP rating: IP55 / IP67 Cable length: 100mDesigned for integration in demanding automation environments requiring precise regulation and reliable feedback.
Specifikationer
Produktbeskrivelse
7.138,00 kr.
Ordreproduceret
Forventet afsendelse:
Indlæser...
Estimated Shipping:
Beregn fragt
Loading shipping methods...
Leveringsmetoder
No shipping methods available for this destination.
Specifikationer
IP klassificering
IP55 / IP67
Yderdiameter (mm)
120
Flangetykkelse (mm)
7
Encoder Material
Aluminium
Kabellængde (m)
100
Akseldiameter (mm)
9
IEC norm
56B5
BCD norm
100
HS-Kode
90292038.000000
Encoder forsyning
5-24VDC
Encoder signaler
A90°B / A'90°B' HTL/TTL
Pulser
128
Beskrivelse
BEGE Flanged Encoder MIG Nova+ MN-120-09-0128-7
- High Resolution Incremental Encoder: The MIG Nova+ delivers 128 pulses per revolution per channel, providing accurate speed and direction feedback for precise automation control systems.- Enhanced Signal Stability: Thanks to advanced electronics, this encoder ensures greater signal integrity and noise immunity, reducing errors and maintaining reliable feedback even in electrically noisy industrial environments.- Wide Voltage Input: Operates at 5–24 VDC, allowing for flexible integration with a variety of control systems and PLCs.- Long Cable Range: Equipped with a 100-meter cable, the MIG Nova+ enables remote installation and connectivity, increasing design flexibility in large industrial assemblies.- Sturdy Construction: Manufactured from high-grade aluminium and rated for IP55/IP67 protection, making this encoder suitable for harsh environments with exposure to dust, moisture, and mechanical impacts.- Flange and Shaft Dimensions: Outer flange diameter Ø120 mm, Bolt Circle Diameter (BCD) 100 mm, flange thickness 7 mm, and 9 mm shaft diameter, readily fitting IEC 56B5 motors.- Versatile Output Signals: Dual outputs (A90°B / A'90°B') in HTL/TTL formats ensure compatibility with a wide range of controllers and frequency inverters.- Application Scope: Ideally suited for precise speed regulation in conveyor systems, robotics, packaging lines, and production machinery in industries that require improved feedback accuracy for advanced automation tasks.- BEGE Reliability: Engineered for durability and minimal maintenance, the MIG Nova+ enhances machine uptime and overall efficiency for technical specialists and engineers.**Encoder Types Available from BEGE:**
- MIG Basic: Incremental encoder designed for basic speed feedback in standard automation tasks.- MIG Nova+: Incremental encoder with higher resolution and improved signal stability, perfect for demanding automation and precise speed control.- MIG AST: Absolute encoder that retains position after power loss, ideal for high-precision positioning and advanced motion control systems.
- High Resolution Incremental Encoder: The MIG Nova+ delivers 128 pulses per revolution per channel, providing accurate speed and direction feedback for precise automation control systems.- Enhanced Signal Stability: Thanks to advanced electronics, this encoder ensures greater signal integrity and noise immunity, reducing errors and maintaining reliable feedback even in electrically noisy industrial environments.- Wide Voltage Input: Operates at 5–24 VDC, allowing for flexible integration with a variety of control systems and PLCs.- Long Cable Range: Equipped with a 100-meter cable, the MIG Nova+ enables remote installation and connectivity, increasing design flexibility in large industrial assemblies.- Sturdy Construction: Manufactured from high-grade aluminium and rated for IP55/IP67 protection, making this encoder suitable for harsh environments with exposure to dust, moisture, and mechanical impacts.- Flange and Shaft Dimensions: Outer flange diameter Ø120 mm, Bolt Circle Diameter (BCD) 100 mm, flange thickness 7 mm, and 9 mm shaft diameter, readily fitting IEC 56B5 motors.- Versatile Output Signals: Dual outputs (A90°B / A'90°B') in HTL/TTL formats ensure compatibility with a wide range of controllers and frequency inverters.- Application Scope: Ideally suited for precise speed regulation in conveyor systems, robotics, packaging lines, and production machinery in industries that require improved feedback accuracy for advanced automation tasks.- BEGE Reliability: Engineered for durability and minimal maintenance, the MIG Nova+ enhances machine uptime and overall efficiency for technical specialists and engineers.**Encoder Types Available from BEGE:**
- MIG Basic: Incremental encoder designed for basic speed feedback in standard automation tasks.- MIG Nova+: Incremental encoder with higher resolution and improved signal stability, perfect for demanding automation and precise speed control.- MIG AST: Absolute encoder that retains position after power loss, ideal for high-precision positioning and advanced motion control systems.
