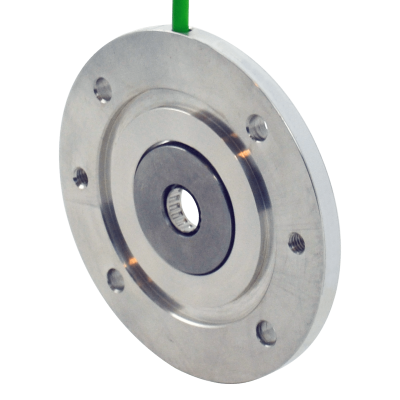

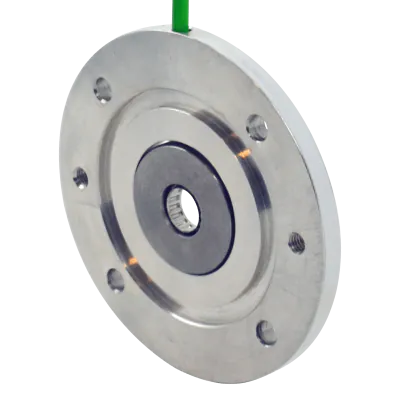

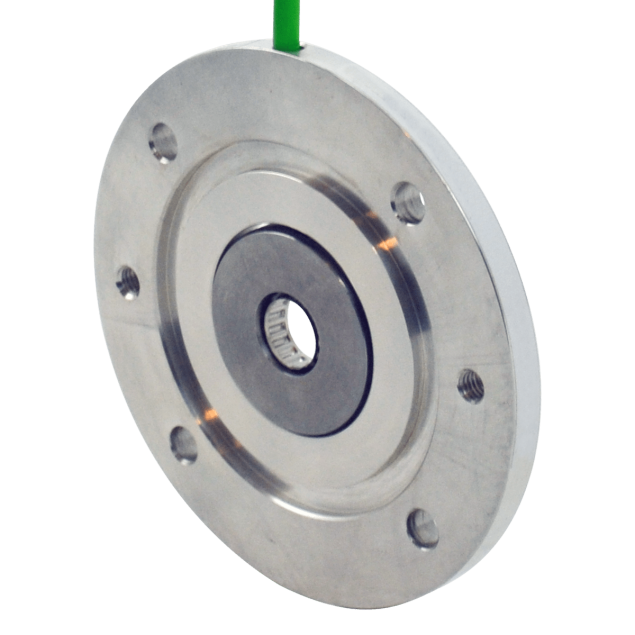

BEGE flange encoder MIG Nova+ MN-120-09-0016-7, 16 pulses, 2m cable, aluminium
HV52A12009001607002BEGE flange encoder MIG Nova+ MN-120-09-0016-7, 16 pulses, 2m cable, aluminium is an incremental encoder designed for precise feedback in automated systems. This model offers high resolution and enhanced signal stability for demanding motion control tasks. Key attributes: BCD norm: 100; Flange diameter: 120 mm; Shaft diameter: 9 mm; Flange thickness: 7 mm; IEC standard: 56B5; Pulse rate: 16 pulses per channel; Input voltage: 5-24 VDC; Output: A90°B / A'90°B' HTL/TTL; Cable length: 2 m; Material: Aluminium; IP rating: IP55 / IP67. Designed for integration into modern automation environments where improved positional accuracy and reliable feedback are required.
Specifikationer
Produktbeskrivelse
2.027,00 kr.
Ordreproduceret
Forventet afsendelse:
Indlæser...
Estimated Shipping:
Beregn fragt
Loading shipping methods...
Leveringsmetoder
No shipping methods available for this destination.
Specifikationer
IP klassificering
IP55 / IP67
Yderdiameter (mm)
120
Flangetykkelse (mm)
7
Encoder Material
Aluminium
Kabellængde (m)
2
Akseldiameter (mm)
9
IEC norm
56B5
BCD norm
100
HS-Kode
90292038.000000
Encoder forsyning
5-24VDC
Encoder signaler
A90°B / A'90°B' HTL/TTL
Pulser
16
Beskrivelse
Product Name:
BEGE Flanged Encoder MIG Nova+ MN-120-09-0016-7, 16 pulses, 2m cable, aluminiumKey Features & Benefits:
High-Resolution Incremental Encoder: The MIG Nova+ offers higher resolution (16 pulses/channel) compared to basic encoders, providing enhanced accuracy crucial for precise speed feedback and control tasks in industrial automation.
Stable Signal Output: Equipped with advanced signal stabilization and dual output formats (A90°B / A'90°B' HTL/TTL), reducing noise and error, and improving system reliability even in environments with substantial electromagnetic interference.
Robust Aluminium Construction: The durable aluminium housing and IP55/IP67 protection ensure excellent resistance to mechanical stress, dust, and moisture—ideal for harsh and demanding settings.
Versatile Mounting: Flange diameter Ø120mm, BCD 100mm, shaft 9mm, and compliance with IEC 56B5 motor standards allow straightforward integration, simplifying retrofitting or new installations on various gear motors and drives.
Flexible Connectivity: Supplied with a pre-mounted 2-meter cable for fast, error-free connections and placement flexibility in control cabinets or on-site machinery.
Wide Input Voltage Range: Accepts 5–24VDC, supporting direct interfacing with a broad array of modern PLCs and motion controllers.Application Possibilities:
Speed and Position Feedback: Perfect for precise speed regulation and direction detection in conveyor systems, packaging machinery, and assembly lines. The high pulse count supports accurate movement synchronization.
Automated Process Improvement: Ideal for systems requiring dynamic feedback and stable control, such as robotics, textile machines, and printing presses.
Suitable For Upgrades: A robust drop-in replacement for standard encoders in legacy systems, providing improved resolution and system reliability without redesign requirements.Other BEGE Encoder Types:
MIG Basic: Incremental encoder for basic speed feedback in standard automation tasks.
MIG AST: Absolute encoder preserving position data after power loss, for advanced closed-loop positioning and sophisticated control systems.
