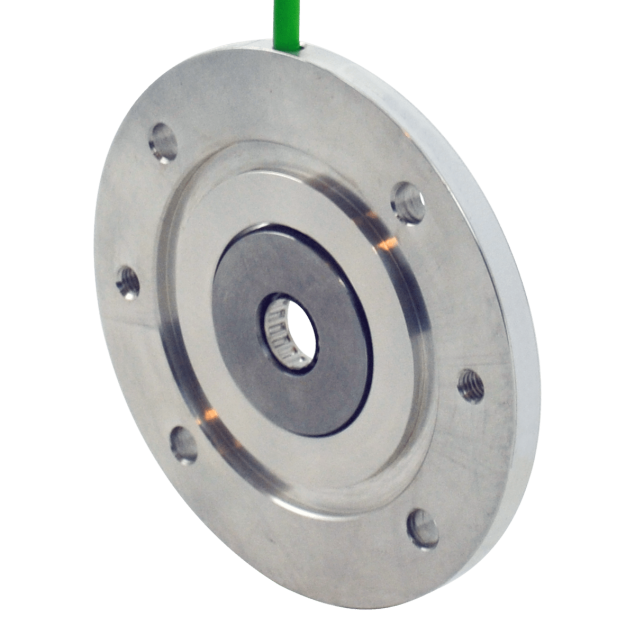

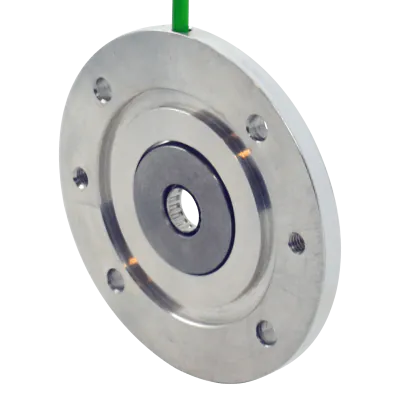

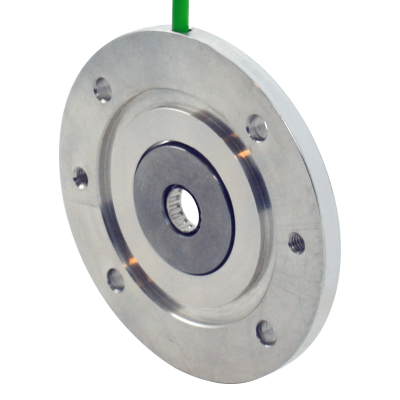

BEGE flange encoder MIG Nova+ MN-120-09-0004-7, 4 pulses, 4P conn. 5m cable, aluminium
HV52A12009000407S05BCD norm: 100 Cable length: 5 m Flange thickness: 7 mm IEC norm: 56B5 Material: Aluminium Outer diameter: 120 mm Shaft diameter: 9 mm Flange outside: Ø120 mm Flange BCD: 100 mm Input: 5–24 VDC Output: A90°B HTL Pulses/rev: 4 per channel Connector: 4P, 5 meter cable IP classification: IP55 / IP67
Specifikationer
Produktbeskrivelse
2.750,00 kr.
Ordreproduceret
Forventet afsendelse:
Indlæser...
Estimated Shipping:
Beregn fragt
Loading shipping methods...
Leveringsmetoder
No shipping methods available for this destination.
Specifikationer
IP klassificering
IP55 / IP67
Yderdiameter (mm)
120
Flangetykkelse (mm)
7
Encoder Material
Aluminium
Kabellængde (m)
5
Akseldiameter (mm)
9
IEC norm
56B5
BCD norm
100
HS-Kode
90292038.000000
Encoder forsyning
5-24VDC
Encoder signaler
A90°B HTL
Pulser
4
Beskrivelse
Product Name:
BEGE Flanged Encoder MIG Nova+ MN-120-09-0004-7Key Features, Advantages, and Applications:
High-Resolution Incremental Encoder: The MIG Nova+ offers enhanced resolution and improved signal stability for precise speed and position feedback, outperforming basic encoders in demanding automation environments.
Advanced Signal Quality: Delivers reliable HTL (High Threshold Logic) A90°B output, ensuring accurate transmission with minimal signal interference, ideal for integration in complex control systems.
Extended Cable Length: Equipped with a 5-meter cable (4P connector), enabling flexible installation even when utilized in large-scale machinery or distant control cabinets.
Robust Aluminium Construction: The encoder’s aluminum body ensures durability, lightweight performance, and high resistance to industrial environmental influences.
Versatile IP Protection: Rated IP55 / IP67, the MIG Nova+ is suitable for use in environments exposed to dust, water jets, or temporary submersion, supporting both indoor and outdoor automated operations.
Standardized Flange Design: With a 120mm flange diameter, 100mm BCD, and 7mm flange thickness, this encoder is compatible with IEC 56B5 motors, ensuring straightforward mechanical integration in standardized drive systems.
Precision Shaft Coupling: 9mm shaft diameter provides secure and precise fitting to drive shafts, reducing runout and maximizing measurement accuracy.
Wide Input Voltage Range: Supports 5–24VDC enabling compatibility with a broad spectrum of control and PLC systems.
Application Scope: Perfect for automation solutions requiring detailed speed and position feedback such as conveyor systems, robotics, CNC machinery, and process line automation. Encoder Family Options:
MIG Basic: Entry-level incremental encoder for fundamental speed feedback in standard automation tasks.
MIG Nova+: High-resolution incremental encoder with superior signal stability for precise regulation in automated systems.
MIG AST: Absolute encoder maintaining position data after power loss, recommended for advanced control and accurate positioning tasks.
