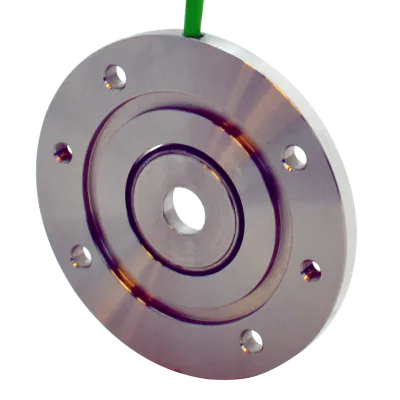

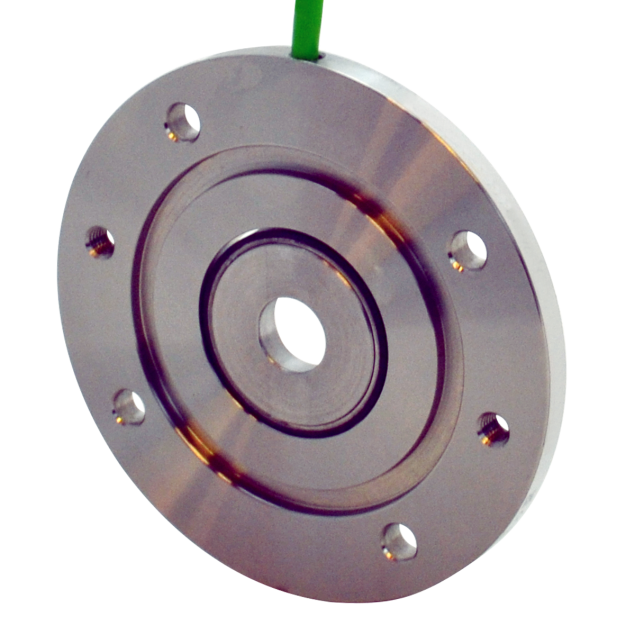

BEGE flange encoder MIG Nova+ MN-090-11-0016-7, 16 pulses, 5m cable, rustfrit stål
HV52S09011001607005The BEGE flange encoder MIG Nova+ MN-090-11-0016-7 is an incremental encoder with higher resolution and improved signal stability, suited for precise speed and position feedback in automated systems. Key attributes: BCD norm: 75, Cable length: 5 m, Flange thickness: 7 mm, IEC norm: 63B14, Material: Stainless steel, Outer diameter: 90 mm, Shaft diameter: 11 mm, Input voltage: 5-24 VDC, Output: A90°B / A'90°B' HTL/TTL, Pulses per revolution: 16 per channel, IP classification: IP55/IP67. The robust stainless steel design ensures reliability in demanding environments.
Specifikationer
Produktbeskrivelse
3.576,00 kr.
Forventet afsendelse:
Indlæser...
Estimated Shipping:
Beregn fragt
Loading shipping methods...
Leveringsmetoder
No shipping methods available for this destination.
Specifikationer
IP klassificering
IP55 / IP67
Yderdiameter (mm)
90
Flangetykkelse (mm)
7
Encoder Material
Rustfrit stål
Kabellængde (m)
5
Akseldiameter (mm)
11
IEC norm
63B14
BCD norm
75
HS-Kode
90292038.000000
Encoder forsyning
5-24VDC
Encoder signaler
A90°B / A'90°B' HTL/TTL
Pulser
16
Beskrivelse
BEGE Power Transmission is a prominent European manufacturer, known for high-quality encoders and drive components engineered for demanding industrial automation applications. Their products deliver consistent reliability, durability, and precision.
**Product Name**
BEGE flanged encoder MIG Nova+ MN-090-11-0016-7, 16 pulses, 5m cable, stainless steel
**Key Features and Advantages**
• Incremental encoder with high resolution and improved signal stability, ideal for precise regulation in advanced automated systems.• Stainless steel construction ensures exceptional resistance to corrosion and industrial environments, delivering extended service life even under harsh conditions.• 90 mm outer flange diameter (BCD: 75 mm) and 7 mm flange thickness provide robust, vibration-resistant mounting for versatile installation in various motors and machines.• Compatible with IEC 63B14 motor mount interface and 11 mm shaft diameter for flexible system integration.• Wide input voltage range (5-24VDC) supports versatile deployment across modern automation platforms.• HTL/TTL signal output (A90°B / A'90°B') allows flexible connection to a wide range of controllers and PLCs.• Delivers 16 pulses per revolution per channel, enabling accurate speed control and positioning feedback.• 5-meter cable length simplifies installation in control cabinets or remote locations.• IP55/IP67 protection class ensures reliable operation in dusty, moist, or wet production environments.**Application Possibilities**
• MIG Basic: As an incremental encoder, provides essential speed feedback for standard automation tasks in conveyor systems, pumps, and packaging machinery.• MIG Nova+: Offers superior signal stability and resolution for precise feedback in robotics, printing machines, labeling systems, and CNC equipment.• MIG AST: Suitable where absolute position feedback is critical. Retains position information after a power outage for advanced motion control, positioning, and safety applications in material handling and intelligent robotics.
**Product Name**
BEGE flanged encoder MIG Nova+ MN-090-11-0016-7, 16 pulses, 5m cable, stainless steel
**Key Features and Advantages**
• Incremental encoder with high resolution and improved signal stability, ideal for precise regulation in advanced automated systems.• Stainless steel construction ensures exceptional resistance to corrosion and industrial environments, delivering extended service life even under harsh conditions.• 90 mm outer flange diameter (BCD: 75 mm) and 7 mm flange thickness provide robust, vibration-resistant mounting for versatile installation in various motors and machines.• Compatible with IEC 63B14 motor mount interface and 11 mm shaft diameter for flexible system integration.• Wide input voltage range (5-24VDC) supports versatile deployment across modern automation platforms.• HTL/TTL signal output (A90°B / A'90°B') allows flexible connection to a wide range of controllers and PLCs.• Delivers 16 pulses per revolution per channel, enabling accurate speed control and positioning feedback.• 5-meter cable length simplifies installation in control cabinets or remote locations.• IP55/IP67 protection class ensures reliable operation in dusty, moist, or wet production environments.**Application Possibilities**
• MIG Basic: As an incremental encoder, provides essential speed feedback for standard automation tasks in conveyor systems, pumps, and packaging machinery.• MIG Nova+: Offers superior signal stability and resolution for precise feedback in robotics, printing machines, labeling systems, and CNC equipment.• MIG AST: Suitable where absolute position feedback is critical. Retains position information after a power outage for advanced motion control, positioning, and safety applications in material handling and intelligent robotics.
