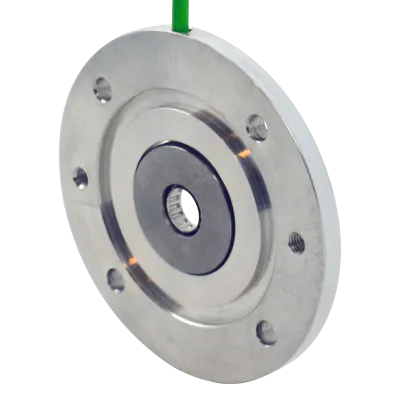

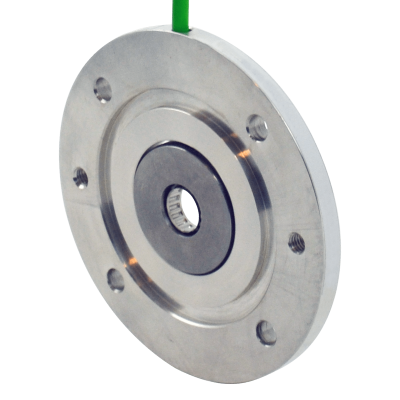

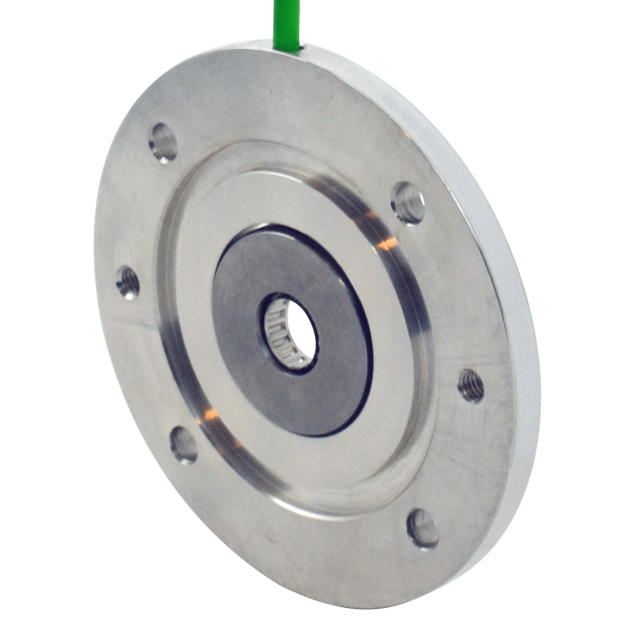

BEGE flange encoder MIG Basic MB-200-38-0001-12, 1 pulses, 4P conn. 5m cable, aluminium
HV51A20038000112S05The BEGE flange encoder MIG Basic MB-200-38-0001-12 is an incremental encoder for basic speed feedback in standard automation applications. Key attributes include: Flange outer diameter: 200 mm Flange BCD: 165 mm Flange thickness: 12 mm Shaft diameter: 38 mm IEC norm: 132B14 Material: Aluminium Input voltage: 5-24 VDC Output: A 90° B HTL Pulses per revolution: 1 per channel Cable: 4-pin connector, 5 m length IP classification: IP55 / IP67 Suitable for standard motor applications where robust and reliable feedback is required.
Specifikationer
Produktbeskrivelse
2.437,00 kr.
Ordreproduceret
Forventet afsendelse:
Indlæser...
Estimated Shipping:
Beregn fragt
Loading shipping methods...
Leveringsmetoder
No shipping methods available for this destination.
Specifikationer
IP klassificering
IP55 / IP67
Yderdiameter (mm)
200
Flangetykkelse (mm)
12
Encoder Material
Aluminium
Kabellængde (m)
5
Akseldiameter (mm)
38
IEC norm
132B14
BCD norm
165
HS-Kode
90292038.000000
Encoder forsyning
5-24VDC
Encoder signaler
A90°B HTL
Pulser
1
Beskrivelse
BEGE is a renowned manufacturer of advanced drive components, known for delivering durable, reliable, and high-precision encoder solutions for demanding industrial automation environments.**Product Name**
BEGE Flanged Encoder MIG Basic MB-200-38-0001-12**Key Features and Benefits**
- Incremental encoder designed for basic speed feedback in standard automation tasks, ensuring robust and reliable movement control in conveyor systems, packaging machinery, and light industrial processes.- Flange diameter of 200mm and shaft diameter of 38mm according to IEC 132B14 standard makes it compatible with a wide range of industrial motors and gear units.- 1 pulse per revolution per channel provides essential speed information for basic closed-loop control or monitoring applications.- HTL signal output (A90°B) with 5–24VDC input is ideal for integration into a variety of PLC and automated control platforms.- Durable aluminium housing and IP55/IP67 classification provide strong protection against dust, water, and harsh industrial conditions, allowing reliable operation in tough environments.- 5-meter cable with 4P connector enables flexible installation in control cabinets or directly onto machinery.- Flange thickness of 12mm and BCD diameter of 165mm ensures stable, vibration-resistant mounting, improving operational safety and longevity.- Suitable for conveyor drives, light automation, and general industry applications where speed monitoring is critical but absolute positioning is not required.**Variations and Advanced Applications**
- MIG Nova+: Higher resolution and improved signal stability make it suitable for more precise regulation in automated systems, such as robotics, automated storage and retrieval systems, and accurate material handling.- MIG AST: Absolute encoder version retains exact position after power loss, perfect for precise positioning and advanced control systems in robotics, CNC machines, and automated production lines.**Summary**
BEGE’s MIG Basic encoder offers optimal reliability for essential speed feedback in standard automation, while the MIG Nova+ and MIG AST versions extend the application range to high-precision and safety-critical environments.
